DJI Zenmuse V1 Without Care

$1,499.00

The DJI Zenmuse V1 is a loudspeaker payload for the Matrice 400, 350 RTK and 300 RTK. It broadcasts live speech, text to speech or your own audio files up to 700 m away on the Matrice 400, at up to 129 dB. Sold without a DJI Care plan.

SKU: DJIZMV1 Categories: ,
at 1 m on the Matrice 400 (127 dB on 350/300 RTK)
129 dB
Peak sound level
Matrice 400 (500 m on 350/300 RTK)
700 m
Broadcast distance
4 ohm impedance
25 W
Nominal speaker power
plus or minus 10 g
690 g
Weight

Specifications

Full manufacturer specifications for this model.

General
Weight
690 ±10 g
Dimensions
134 x 119 x 140 mm
Rated power
30 W
Protection rating
IP54 (lab conditions)
Operating temperature
-20 to 50 °C
Storage temperature
-20 to 60 °C
Mount
Detachable DJI SkyPort
Compatible aircraft
Works with
DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK (Matrice 300 RTK needs the DJI RC Plus)
Speaker
Impedance
4 ohm
Nominal power
25 W
Effective bandwidth
800 Hz to 8 kHz
Broadcast distance
700 m (Matrice 400), 500 m (Matrice 350 RTK and 300 RTK)
Maximum sound pressure
129 dB at 1 m (Matrice 400), 127 dB at 1 m (Matrice 350 RTK and 300 RTK)
Broadcast features
Record and broadcast
Yes
Live broadcast
Matrice 400 only
Text to speech (Matrice 400)
Chinese, English, Spanish, Korean, Japanese and French
Text to speech (Matrice 350 RTK and 300 RTK)
Chinese and English
Audio files
Import MP3, AAC and WAV
Controls
Start and stop recording, loop playback, volume; one controller button can be set to record and play back
Gimbal
Stabilisation
Single axis (tilt)
Tilt range
-125° to +25° mechanical
Controllable range (Matrice 400)
-120° to -5° on a single or dual downward connector; -60° to 0° on the third connector underneath
Modes
Follow, free, re-centre

A speaker that flies to the problem

The Zenmuse V1 lets a pilot talk to people on the ground from the air. It suits search and rescue, public safety, event and site announcements, and wildlife management, where a message needs to carry further than a person can shout.

  • Up to 129 dB at 1 m on the Matrice 400
  • Effective broadcast distance of 700 m on the Matrice 400
  • Detachable SkyPort mount

Live speech, text to speech or your own files

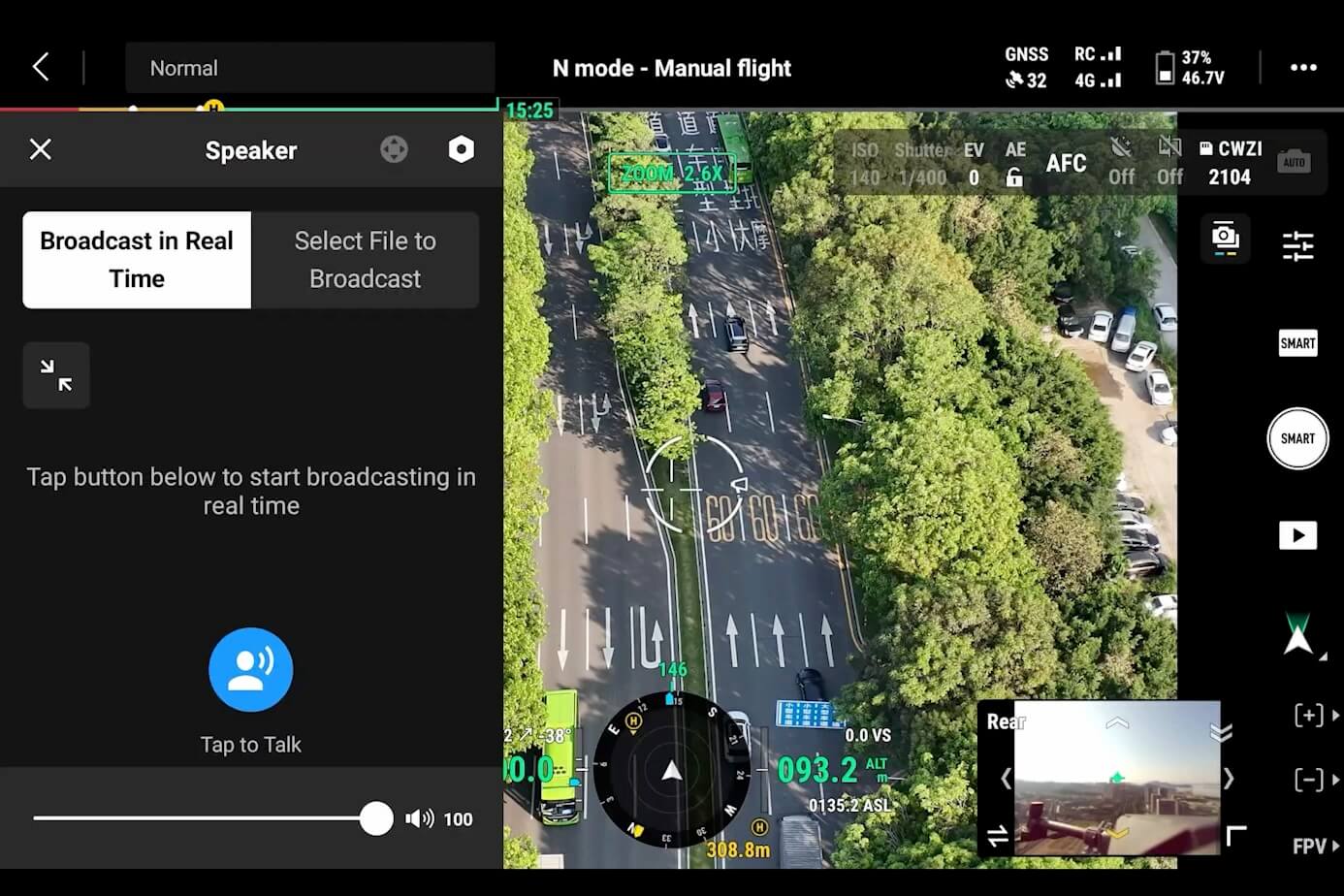

Speak in real time from the controller (Matrice 400 only), type a message and have it read out, or import an MP3, AAC or WAV file and play it on a loop. The speaker menu sits inside DJI Pilot 2.

  • Text to speech in six languages on the Matrice 400
  • Files transfer and play at the same time on the Matrice 400
  • Automatic volume control on the Matrice 400 keeps live speech and files at a steady level

Hears as well as speaks

The controller can pick up directional audio and reduce background noise. In DJI Pilot 2, an augmented reality overlay shows which way the speaker is pointing, so you can aim the message.

Fits the Matrice 400, 350 and 300

The V1 works with the Matrice 400, Matrice 350 RTK and Matrice 300 RTK. The Matrice 300 RTK needs the DJI RC Plus. Some features, such as live broadcast and the extra languages, need the Matrice 400. It is not compatible with the Matrice 4 series.

Built to protect itself

The speaker has temperature, overcurrent and power protection. DJI rates it IP54 under laboratory conditions, and notes that the rating can drop with wear.

Care plans

This listing is the Zenmuse V1 without a Care plan. DJI Care Enterprise plans for the V1 are listed under Care and Warranty.

Not sure this is the right payload?

Call us on 0418 510 987 or use the contact page. Tell us the aircraft and the job and we will confirm it suits before you order.
