DJI Zenmuse H30T SP with DJI Care Enterprise Basic

$17,335.00

The DJI Zenmuse H30T is a multi-sensor payload with a 40 MP zoom camera, a 48 MP wide camera, a 1280 x 1024 thermal camera, a laser rangefinder and a near infrared light. For the Matrice 400, 350 RTK and 300 RTK. Listed with DJI Care Enterprise Basic.

SKU: DJIZMH30TSP1Y Categories: ,
1/1.8 inch sensor, 34x hybrid optical zoom
40 MP
Zoom camera
uncooled VOx, 12 µm pixels
1280 x 1024
Thermal camera
3 m minimum, Class 1
3000 m
Laser rangefinder
plus or minus 5 g
920 g
Weight

Specifications

Full manufacturer specifications for this model.

General
Weight
920 ±5 g
Dimensions
170 x 145 x 165 mm
Power
28 W (H30T)
Protection rating
IP54 (lab conditions)
Operating temperature
-20 to 50 °C
Storage temperature
-20 to 60 °C
Mount
Detachable DJI SkyPort
Compatible aircraft
Works with
DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK (Matrice 300 RTK needs the DJI RC Plus)
Zoom camera
Sensor
1/1.8 inch CMOS, 40 MP
Focal length
7.1 to 172 mm (33.4 to 809.3 mm equivalent)
Aperture
f/1.6 to f/5.2
Diagonal field of view
66.7° to 2.9°
Zoom
34x hybrid optical, 400x maximum
Video
3840 x 2160 at 30 fps
Photo size
7328 x 5496
ISO
100 to 25600 (night scene up to 819200)
Wide camera
Sensor
1/1.3 inch CMOS, 48 MP
Focal length
6.72 mm (24 mm equivalent)
Aperture
f/1.7
Diagonal field of view
82.1°
Video
3840 x 2160 at 30 fps
Photo size
8064 x 6048
Thermal camera
Detector
Uncooled VOx microbolometer
Resolution
1280 x 1024
Lens
24 mm (52 mm equivalent), f/0.95, 45.2° diagonal field of view
Digital zoom
32x
Pixel pitch and band
12 µm, 8 to 14 µm
Sensitivity (NETD)
50 mK or better at f/1.0
Temperature range, high gain
-20 to 150 °C (to 450 °C with the infrared density filter)
Temperature range, low gain
0 to 600 °C (to 1600 °C with the infrared density filter)
Measurement
Spot, area and centre point, with temperature alerts and sun burn protection
Palettes
White hot, black hot, tint, iron red, rainbow 1 and 2, medical, arctic, fulgurite, hot iron
Laser rangefinder
Wavelength
905 nm, Class 1
Range
3 to 3000 m
Accuracy
Up to 500 m: ±(0.2 m + 0.15% of distance). Beyond 500 m: ±1.0 m
Near infrared light
Wavelength and angle
850 nm, 4.6°, Class 1
Coverage
About 8 m across at 100 m
Gimbal and storage
Gimbal
3-axis (tilt, roll, pan), ±0.002° vibration range while hovering
Tilt range
-120° to +60° controllable
Memory card
microSD, U3, Class 10 and V30 or above, exFAT
Software
DJI Terra, DJI FlightHub 2 and DJI Thermal Analysis Tool 3

Zoom, wide and thermal in one gimbal

The Zenmuse H30T puts a zoom camera, a wide camera, a thermal camera, a laser rangefinder and a near infrared light on one stabilised gimbal. One flight gives you the overview, the close look and the heat picture.

  • 40 MP zoom, up to 400x maximum zoom
  • 48 MP wide camera
  • 1280 x 1024 thermal camera
  • Laser rangefinder from 3 m to 3000 m

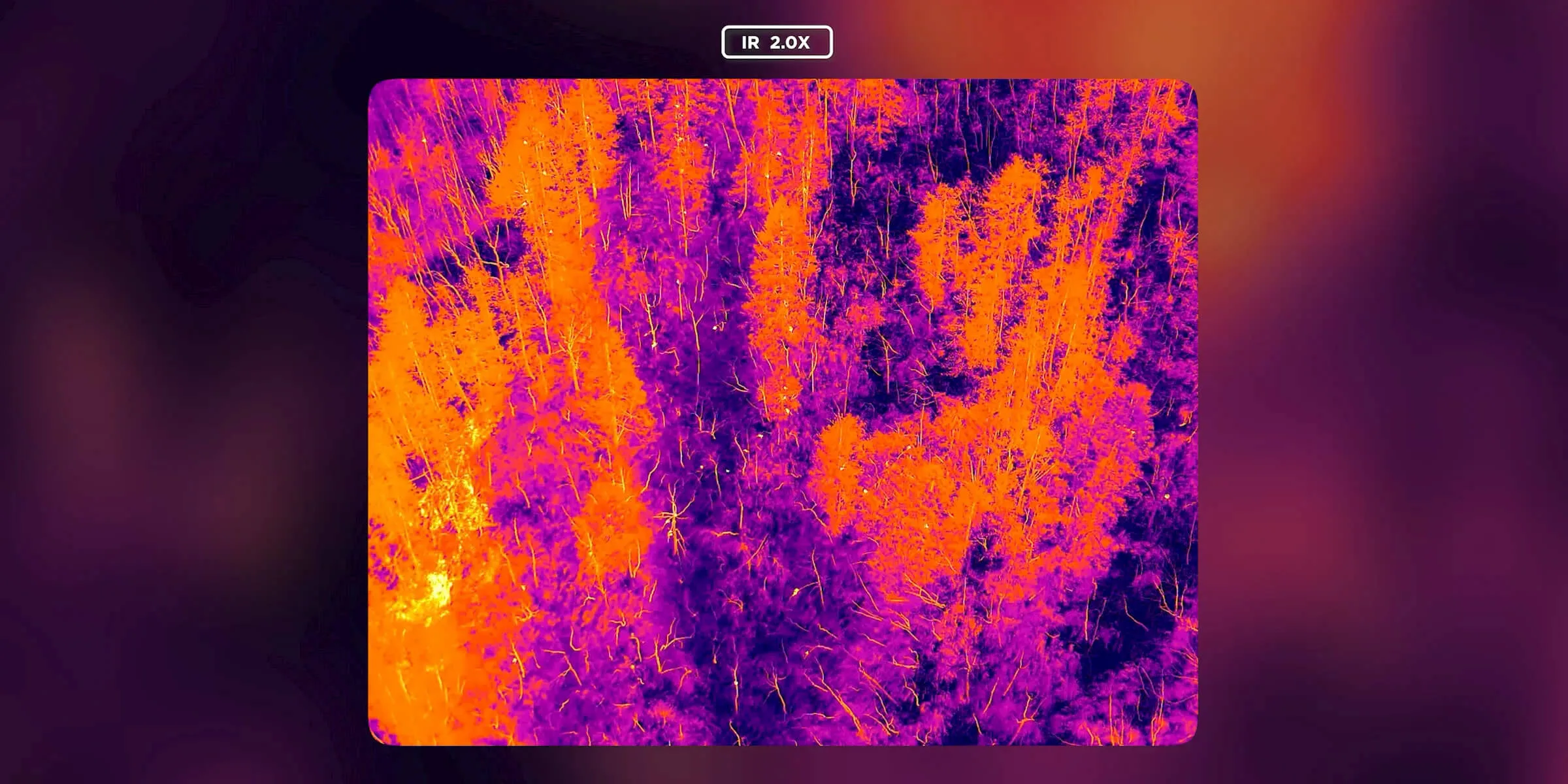

See the heat, then measure it

The thermal camera measures temperature at a spot, over an area or at the centre point, and can raise an alert. In high gain mode it reads from -20 to 150 °C. The Zenmuse H30T Infrared Density Filter, sold separately, extends that range to 450 °C. See the Infrared Density Filter.

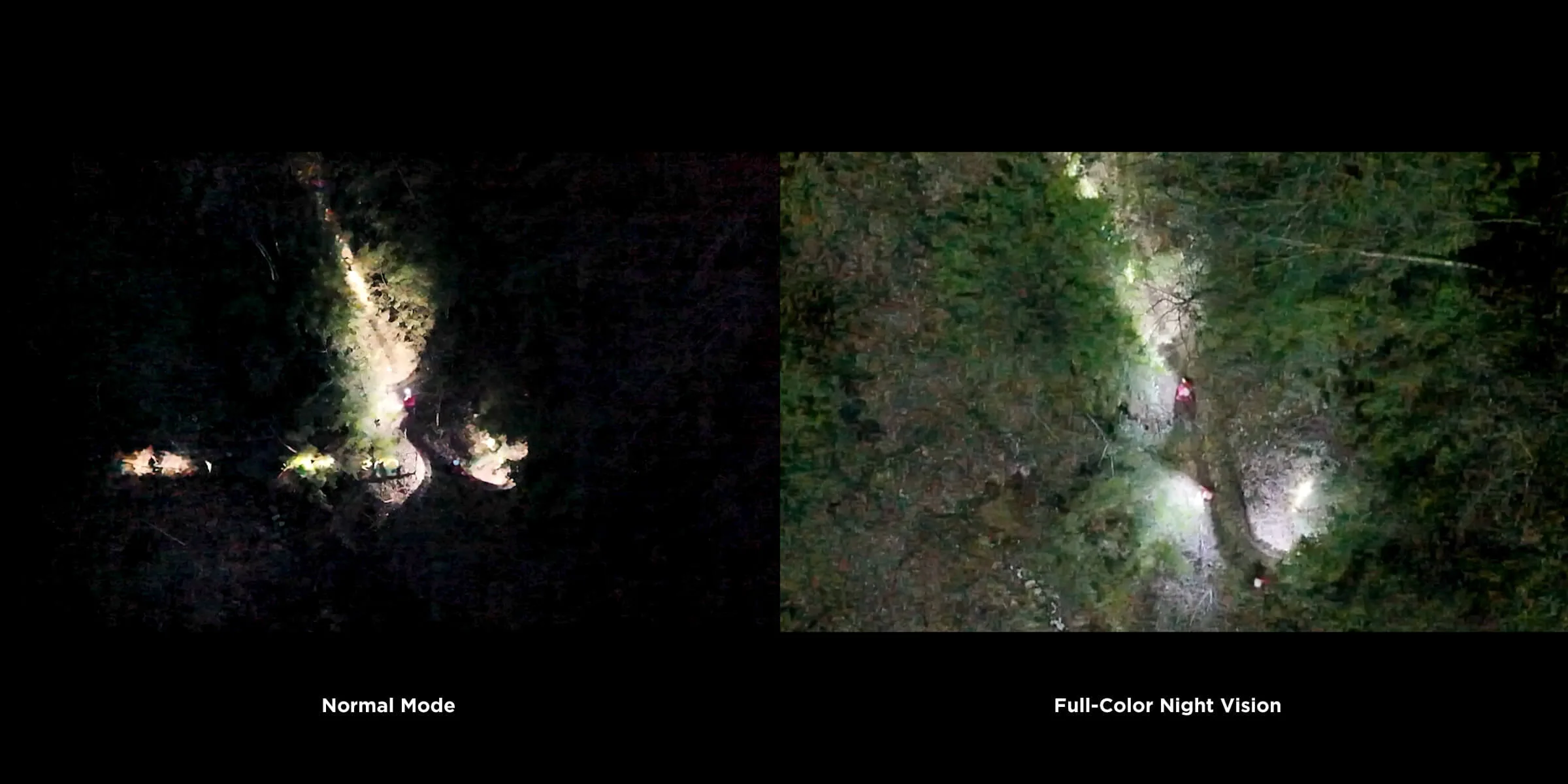

Built for low light

A night scene mode on the zoom and wide cameras and a near infrared light help you keep working when the light fades. Both cameras record 4K at 30 fps in normal mode.

Range and position in one tap

The laser rangefinder measures out to 3000 m, and features such as Click to Aim, Link Zoom and Smart Capture make it faster to lock onto a target and log where it is. DJI lists the range for common objects as about 2000 m on grassland and 1700 m on road surfaces.

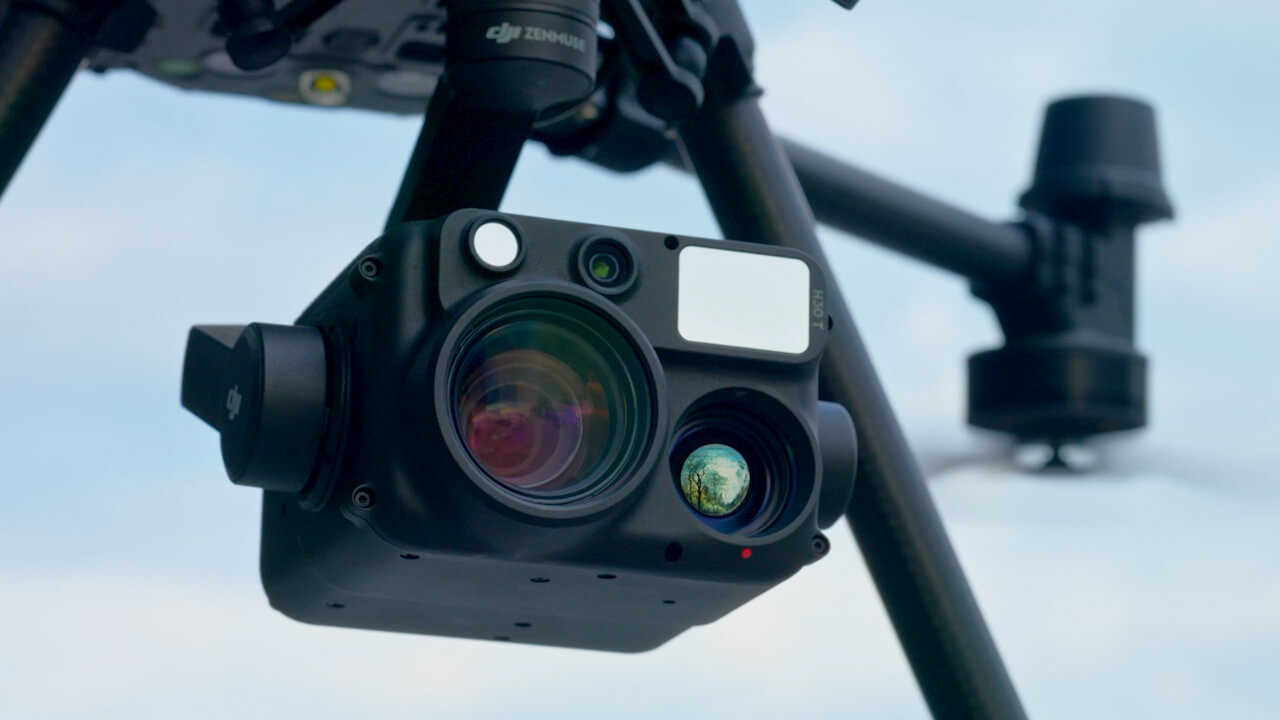

Fits the Matrice 400, 350 and 300

The H30T mounts through DJI SkyPort on the Matrice 400, Matrice 350 RTK and Matrice 300 RTK. The Matrice 300 RTK needs the DJI RC Plus. It is not compatible with the Matrice 4 series or Mavic 3 series.

Care and support

This listing includes DJI Care Enterprise Basic, as named in the product title. Ask us for the plan terms before you order. We are an Australian supplier, so support and servicing stay local.

Not sure this is the right payload?

Call us on 0418 510 987 or use the contact page. Tell us the aircraft and the job and we will confirm it suits before you order.

Additional information

Brand

DJI

Model

Zenmuse H30T

Category

Payloads & Sensors
