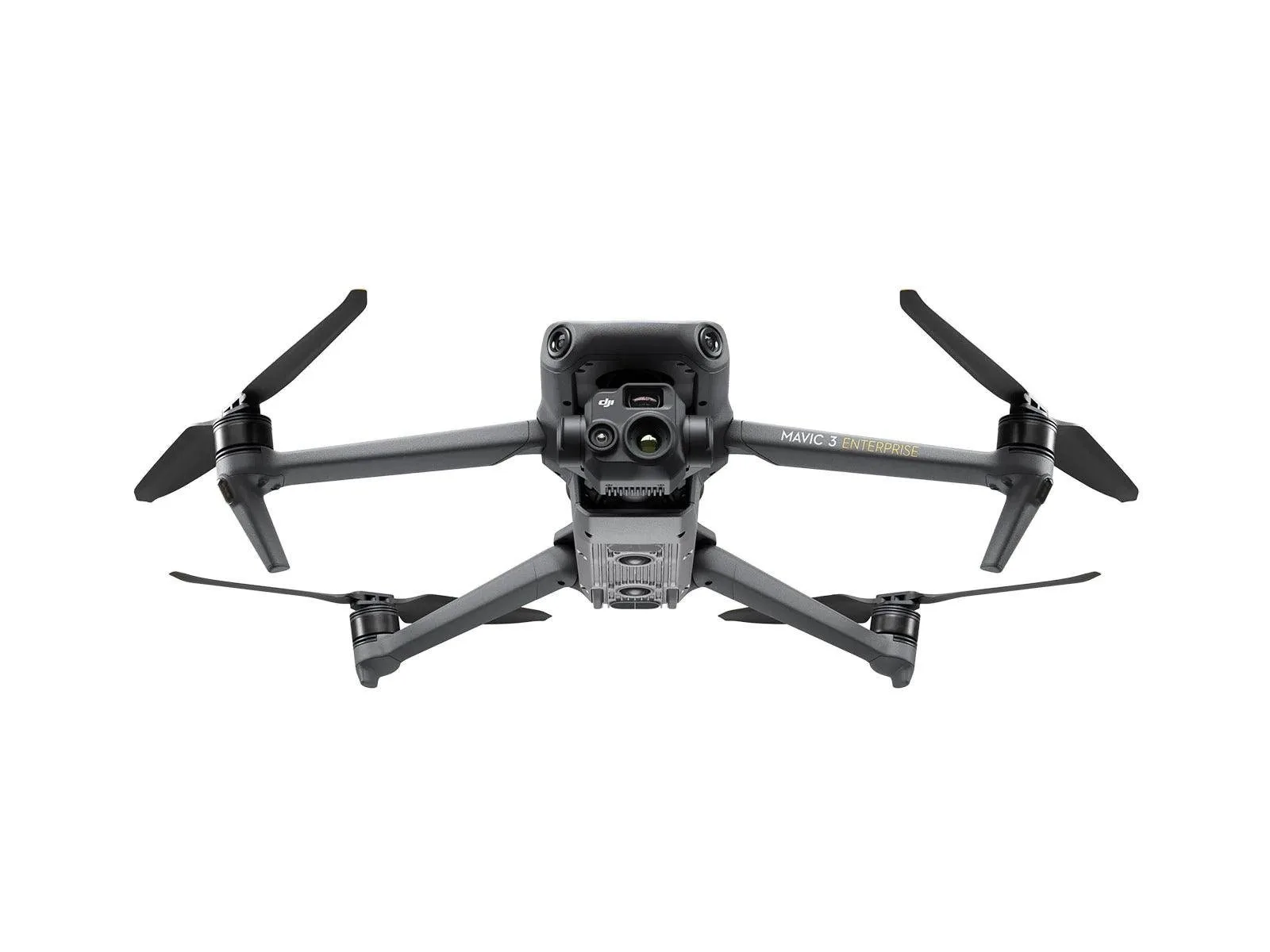

DJI Mavic 3 Thermal including 1 Year Basic Shield

DJI Mavic 3 Thermal + DJI Care Enterprise Basic (1 Year)

Name: DJI Mavic 3 Thermal + DJI Care Enterprise Basic (1 Year)
Brand: DJI
SKU: DJIM3T1Y
Price: 8249.00 AUD
Availability: InStock

$8,249.00

The DJI Mavic 3 Thermal pairs a 640 x 512 thermal camera with a 48 MP wide camera and a 12 MP tele camera on a foldable aircraft. Up to 45 minutes of flight, per DJI. Includes 1 year of DJI Care Enterprise Basic.

Know your drone. Before you fly, check the CASA drone safety rules at knowyourdrone.gov.au.

SKU: DJIM3T1Y Categories: Enterprise Drones, Mavic 3

uncooled VOx, 30 Hz

640 x 512 px

Thermal camera

1/2 inch CMOS

48 MP

Wide camera

12 MP tele camera, per DJI

56 x

Hybrid zoom

max, no wind

45 min

Flight time

Specifications

Full manufacturer specifications for this model.

Aircraft

Weight

920 g with propellers, no accessories

Maximum take-off weight

1050 g

Size, folded

221 x 96.3 x 90.3 mm (without propellers)

Size, unfolded

347.5 x 283 x 107.7 mm (without propellers)

Flight time

Up to 45 minutes (38 minutes hovering), no wind

Maximum flight distance

32 km

Top speed

15 m/s Normal mode, 21 m/s forward in Sport mode

Wind resistance

12 m/s during take-off and landing

Take-off altitude

Up to 6000 m without a payload

Operating temperature

-10 to 40 °C

Battery

5000 mAh, 15.4 V, 4S LiPo, 77 Wh

Positioning

Satellite systems

GPS, Galileo, BeiDou and GLONASS (GLONASS only with the RTK module on)

Hover accuracy

Vertical ±0.1 m, horizontal ±0.3 m with the vision system; ±0.1 m both ways with the optional RTK module

Wide camera

Sensor

1/2 inch CMOS, 48 MP

Lens

84° field of view, 24 mm equivalent, f/2.8

Photo size

8000 x 6000 (12 MP or 48 MP modes)

Video

4K at 30 fps, H.264

Tele camera

Sensor

1/2 inch CMOS, 12 MP

Lens

15° field of view, 162 mm equivalent, f/4.4

Focus

3 m to infinity

Zoom

8x digital, 56x hybrid

Photo size

4000 x 3000

Thermal camera

Sensor

Uncooled VOx microbolometer, 12 μm pixel pitch

Resolution

640 x 512 at 30 Hz

Lens

61° diagonal field of view, 40 mm equivalent, f/1.0

Focus

5 m to infinity

Sensitivity (NETD)

50 mK or better at f/1.0

Temperature range

-20 to 150 °C (high gain), 0 to 500 °C (low gain)

Measurement accuracy

High gain ±2 °C or ±2%, low gain ±5 °C or ±3% (whichever is larger)

Measurement tools

Spot meter and area measurement

Colour palettes

White Hot, Black Hot, Tint, Iron Red, Hot Iron, Arctic, Medical, Fulgurite, Rainbow 1, Rainbow 2

Digital zoom

28x

Photo format

640 x 512, JPEG (8-bit) and R-JPEG (16-bit)

Gimbal and sensing

Gimbal

3-axis mechanical (tilt, roll, pan)

Obstacle sensing

Omnidirectional binocular vision, plus an infrared sensor underneath

Video link and controller

Video system

DJI O3 Enterprise, 4 antennas

Range, unobstructed

15 km (FCC), 8 km (CE, SRRC, MIC)

Controller

DJI RC Pro Enterprise, 5.5 inch 1000 nit screen, about 3 hours of use

Controller weight

Approx. 680 g

Thermal and visual in one flight

The Mavic 3 Thermal carries a 640 x 512 thermal camera, a 48 MP wide camera and a 12 MP tele camera on one gimbal. Switch between views in flight to find a heat source, then check it in normal light.

Spot meter and area temperature measurement
Ten thermal colour palettes
Thermal photos saved as JPEG or R-JPEG

See detail from a distance

The tele camera has a 162 mm equivalent lens, 8x digital zoom and 56x hybrid zoom per DJI, so you can inspect a target without flying close to it.

Long flights, long range

DJI rates the aircraft at up to 45 minutes of flight and up to 15 km of video range under FCC conditions (8 km under CE). Real range depends on interference and obstacles. The aircraft folds down for transport in a vehicle.

Omnidirectional obstacle sensing
Optional RTK module for centimetre level positioning

What is in the box

DJI Mavic 3 Thermal aircraft
DJI RC Pro Enterprise remote controller
1 x Mavic 3 Intelligent Flight Battery
64 GB microSD card
3 pairs of Mavic 3 Enterprise Series propellers
DJI USB-C Power Adapter (100W) with AC cable
USB-C cable and USB-C to USB-C cable
Gimbal protector and screwdriver
Protector case

The optional RTK module and loudspeaker are not included. DJI Care Enterprise is added as a service plan on this listing.

Care plan

This listing includes 1 year of DJI Care Enterprise Basic: two replacements for accidental damage during normal use in that year, each at a small fee, per DJI. Basic replacement counts are not shared between aircraft.
