DJI Mavic 3 Multispectral including 2 Year Basic Shield

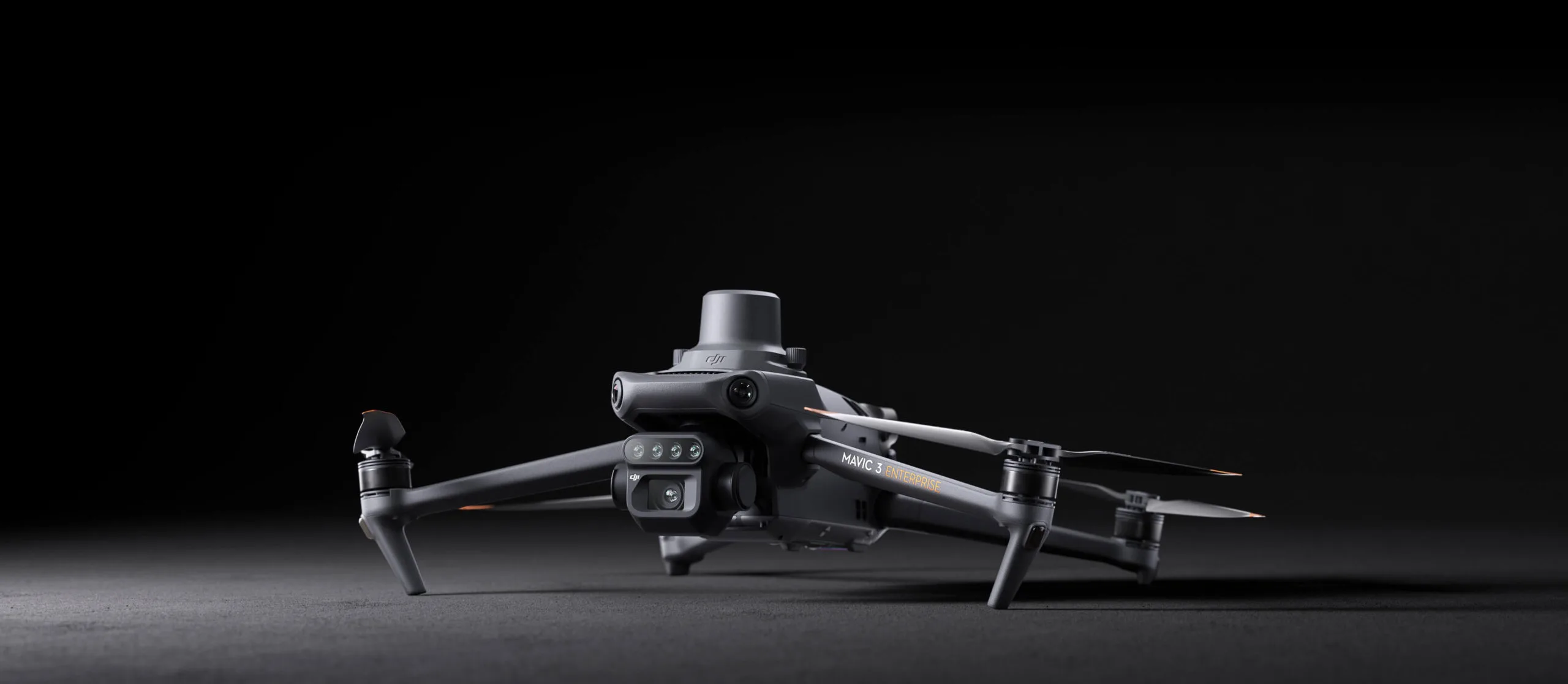

DJI Mavic 3 Multispectral aircraft with its RGB and multispectral cameras

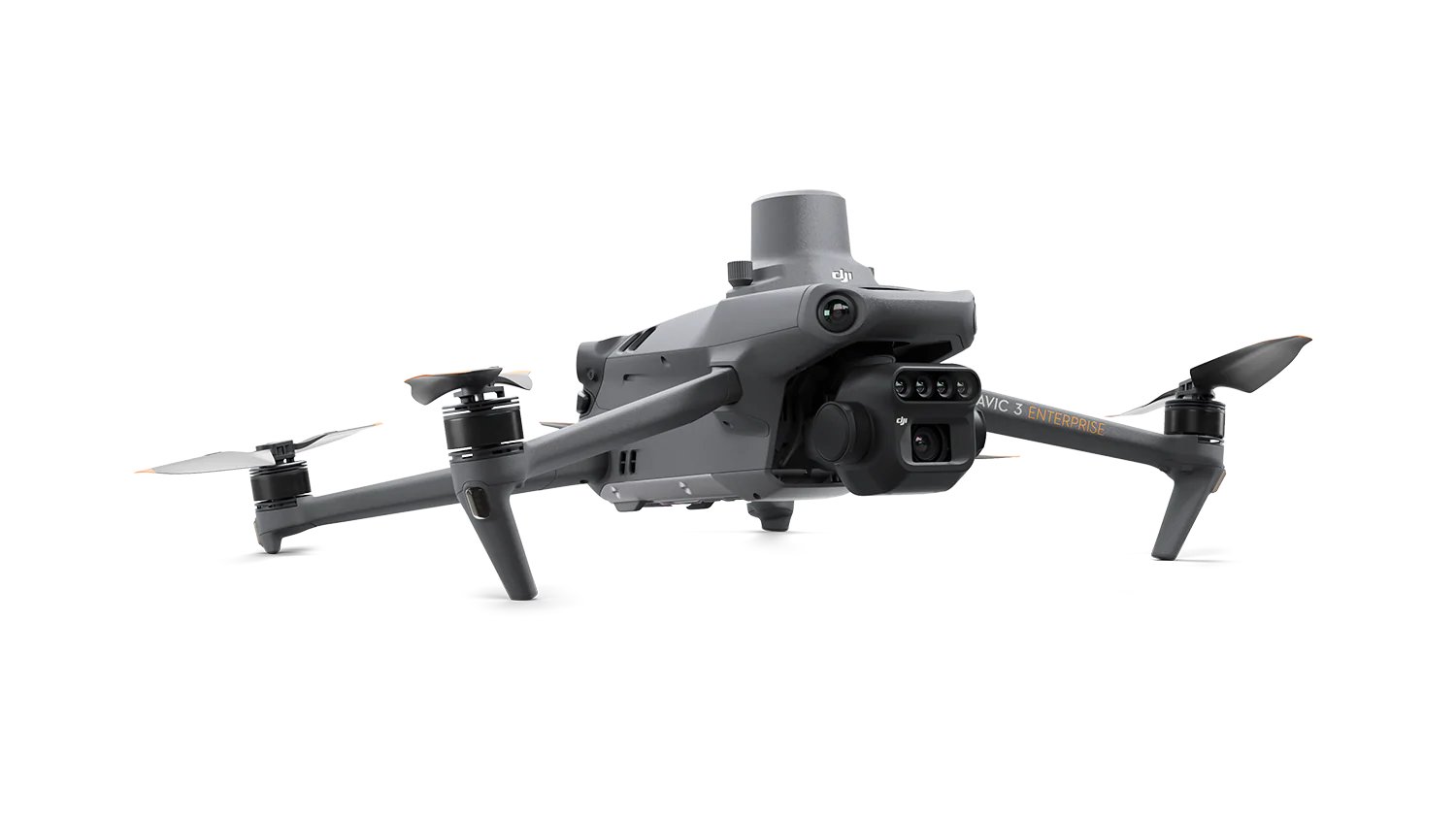

Four multispectral lenses and the RGB camera on the Mavic 3 Multispectral

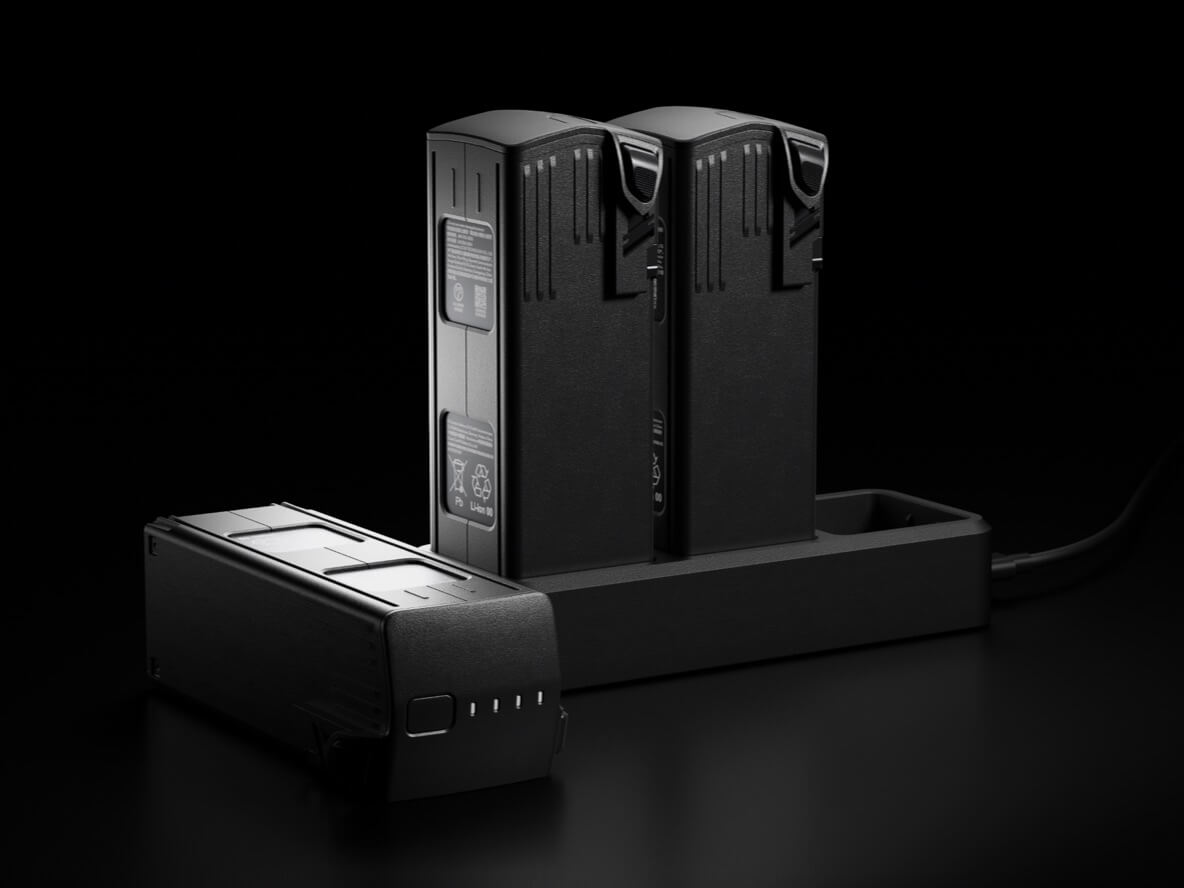

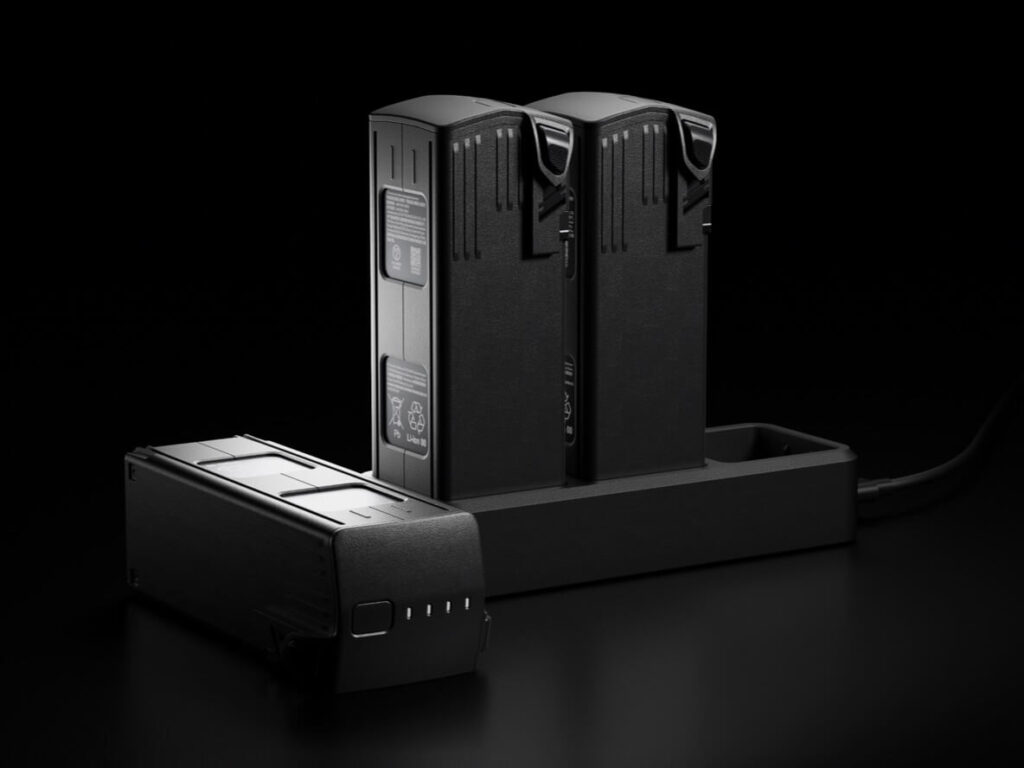

DJI Mavic 3 intelligent flight batteries on their charging hub

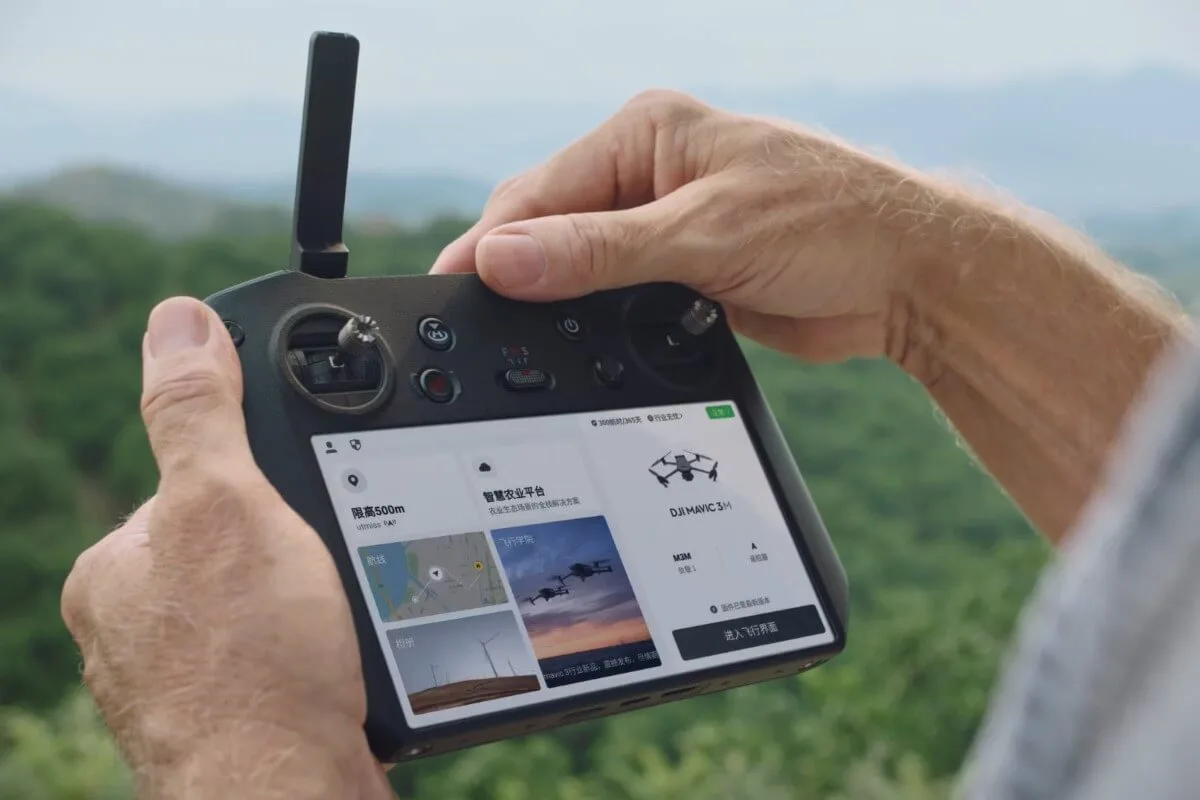

DJI RC Pro Enterprise controller used to fly the Mavic 3 Multispectral

DJI Mavic 3 Multispectral including 2 Year Basic Shield

Name: DJI Mavic 3 Multispectral including 2 Year Basic Shield
Brand: DJI
SKU: DJIM3M2Y
Price: 8278.00 AUD
Availability: InStock

$8,278.00

The DJI Mavic 3 Multispectral pairs a 20 MP RGB camera with four 5 MP multispectral cameras and RTK positioning for crop health mapping. Up to 43 minutes of flight and up to 200 hectares per flight, per DJI. Includes 2 years of DJI Care Enterprise Basic.

Know your drone. Before you fly, check the CASA drone safety rules at knowyourdrone.gov.au.

SKU: DJIM3M2Y Categories: Enterprise Drones, Mavic 3

green, red, red edge and near infrared

4 x 5 MP

Multispectral cameras

4/3 CMOS, mechanical shutter

20 MP

RGB camera

max, no wind

43 min

Flight time

up to, per DJI

200 ha

Per flight

Specifications

Full manufacturer specifications for this model.

Aircraft

Weight

951 g with propellers and RTK module

Maximum take-off weight

1050 g

Size, folded

223 x 96.3 x 122.2 mm (without propellers)

Size, unfolded

347.5 x 283 x 139.6 mm (without propellers)

Flight time

Up to 43 minutes (37 minutes hovering), no wind

Maximum flight distance

32 km

Top speed

15 m/s Normal mode, 21 m/s forward in Sport mode

Wind resistance

12 m/s

Take-off altitude

Up to 6000 m without a payload

Operating temperature

-10 to 40 °C

Battery

5000 mAh, 15.4 V, 4S LiPo, 77 Wh

Positioning

Satellite systems

GPS, Galileo, BeiDou and GLONASS (GLONASS only with the RTK module on)

Hover accuracy with RTK

Vertical ±0.1 m, horizontal ±0.1 m

RGB camera

Sensor

4/3 CMOS, 20 MP

Lens

84° field of view, 24 mm equivalent, f/2.8 to f/11

Shutter

Mechanical 8 to 1/2000 s, electronic 8 to 1/8000 s

Photo size

5280 x 3956, JPEG and DNG

Video

4K at 30 fps, H.264

Multispectral camera

Sensor

1/2.8 inch CMOS, 5 MP, four cameras

Lens

73.91° field of view, 25 mm equivalent, f/2.0, fixed focus

Green

560 ±16 nm

Red

650 ±16 nm

Red edge

730 ±16 nm

Near infrared

860 ±26 nm

Photo size

2592 x 1944, TIFF

Sunlight sensor

Built in module on top of the aircraft

Gimbal and sensing

Gimbal

3-axis mechanical (tilt, roll, pan)

Obstacle sensing

Omnidirectional binocular vision, plus an infrared sensor underneath

Video link and controller

Video system

DJI O3 Enterprise, 4 antennas

Range, unobstructed

15 km (FCC), 8 km (CE, SRRC, MIC)

Controller

DJI RC Pro Enterprise, 5.5 inch 1000 nit screen, about 3 hours of use

Controller weight

Approx. 680 g

Two ways of seeing a crop

The Mavic 3 Multispectral pairs a 20 MP RGB camera with four 5 MP multispectral cameras that capture green, red, red edge and near infrared light. Fly once and you get a normal photo map and the data behind crop health maps such as NDVI.

4/3 CMOS RGB camera with a mechanical shutter
Four multispectral bands in every flight

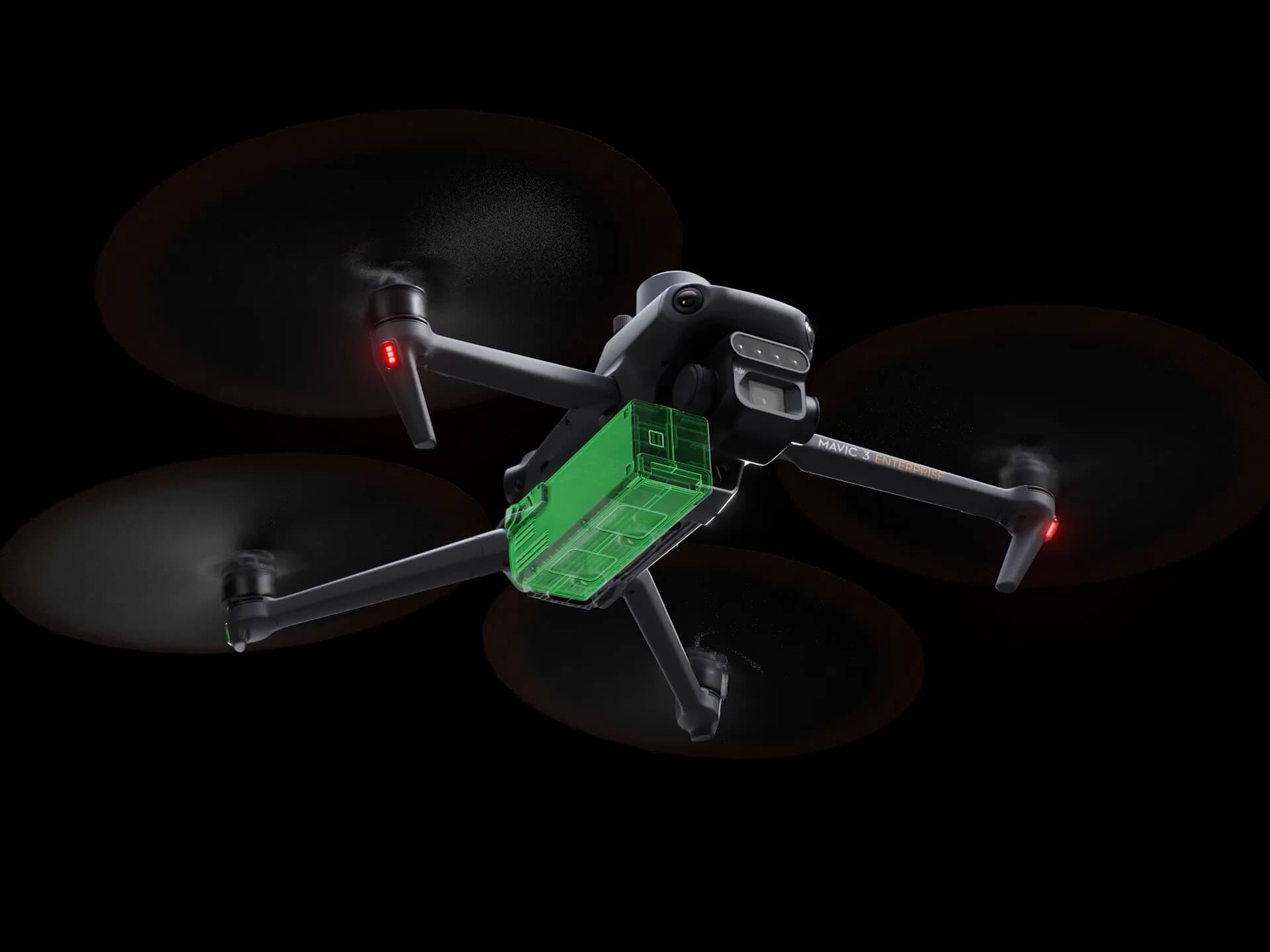

Sunlight sensor on top corrects for changing light

Precise, repeatable positioning

The built in RTK module gives centimetre level positioning, and the cameras are time synchronised to the microsecond so each image is tagged accurately. That matters when you compare the same paddock week after week.

Hover accuracy of ±0.1 m with RTK enabled
Omnidirectional obstacle sensing
Up to 15 km video range under FCC conditions

Cover more ground per flight

DJI rates the aircraft at up to 43 minutes of flight and up to 200 hectares per flight. Real coverage depends on your flight height, overlap and wind. The aircraft folds down for transport in a vehicle.

From flight to map

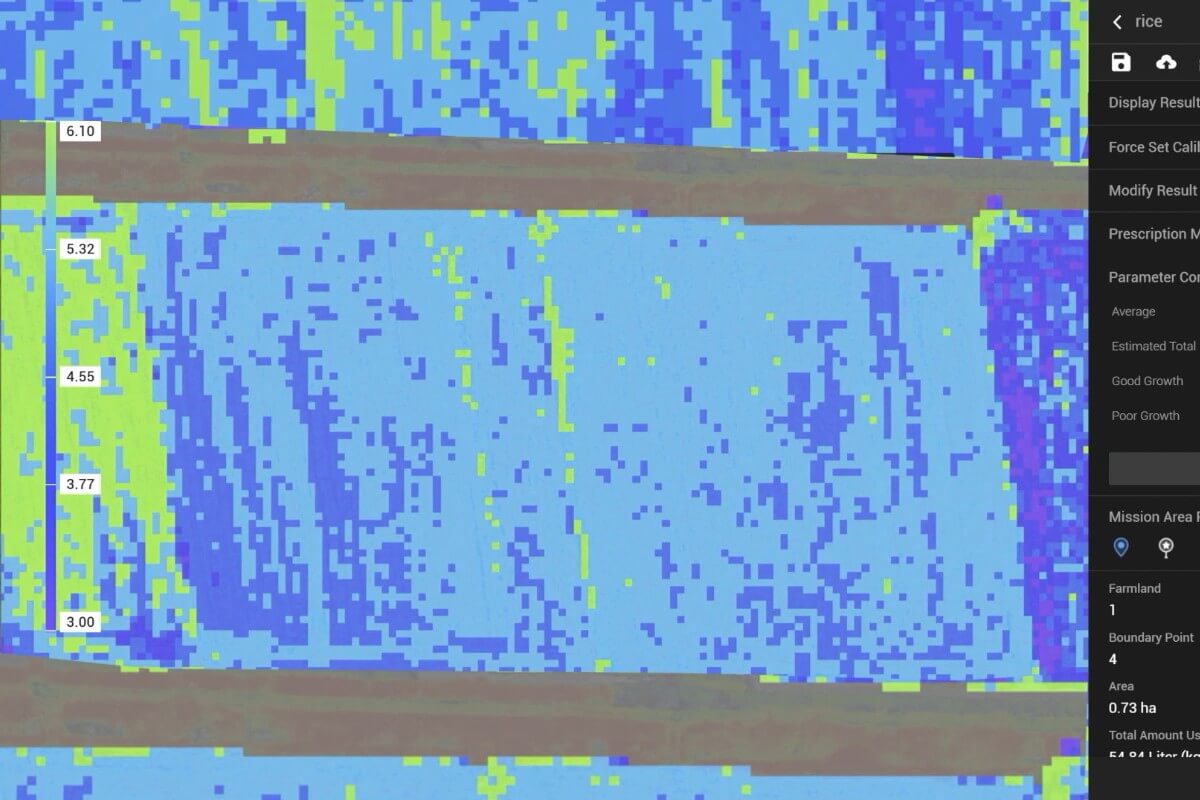

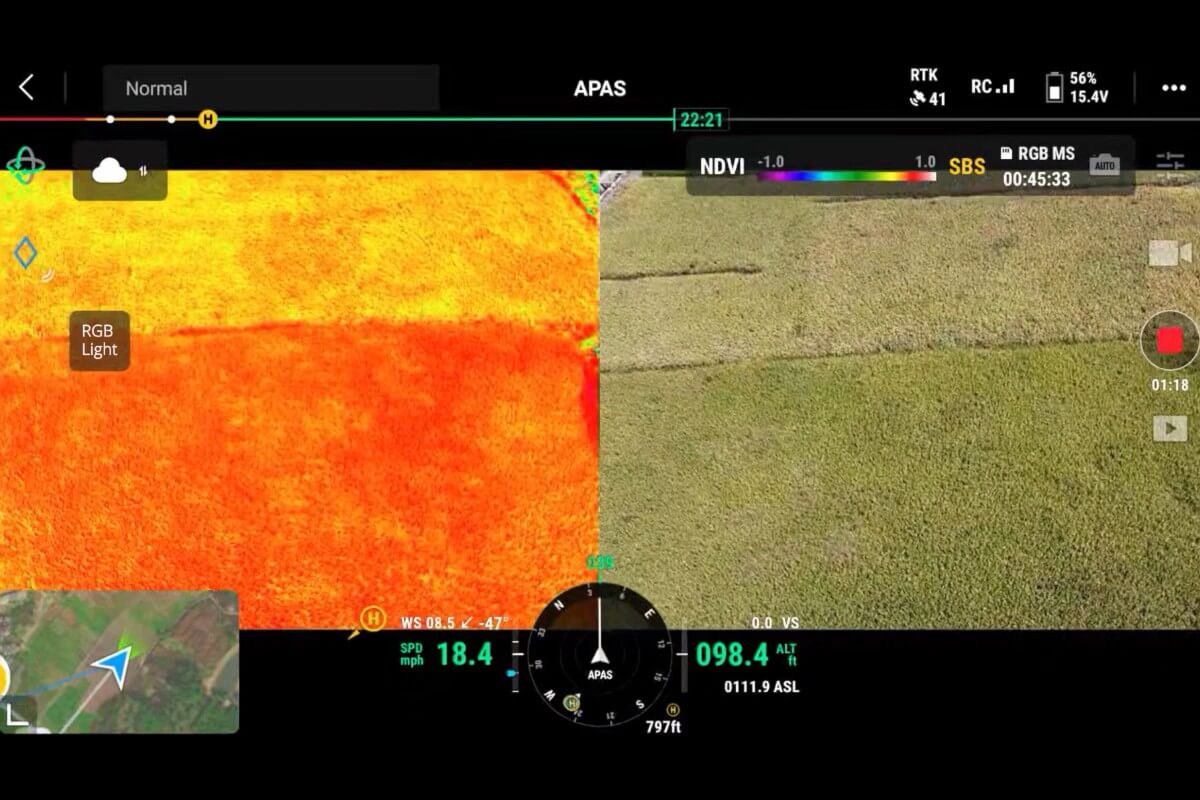

Fly on the DJI RC Pro Enterprise controller, see live NDVI on screen, then process in DJI Terra to build multispectral maps and vegetation indices for spraying and treatment plans.

What is in the box

DJI Mavic 3 Multispectral aircraft (RTK module and microSD card installed)
Remote controller
Intelligent flight battery
Battery charger
Three pairs of propellers
Carrying case

Care plan

This listing includes 2 years of DJI Care Enterprise Basic, as named in the product title. Ask us for the plan terms before you order.

Not sure this is the right aircraft?

Call us on 0418 510 987 or use the contact page. Tell us the crop, the block size and how you plan to process the data and we will confirm it suits before you order.
