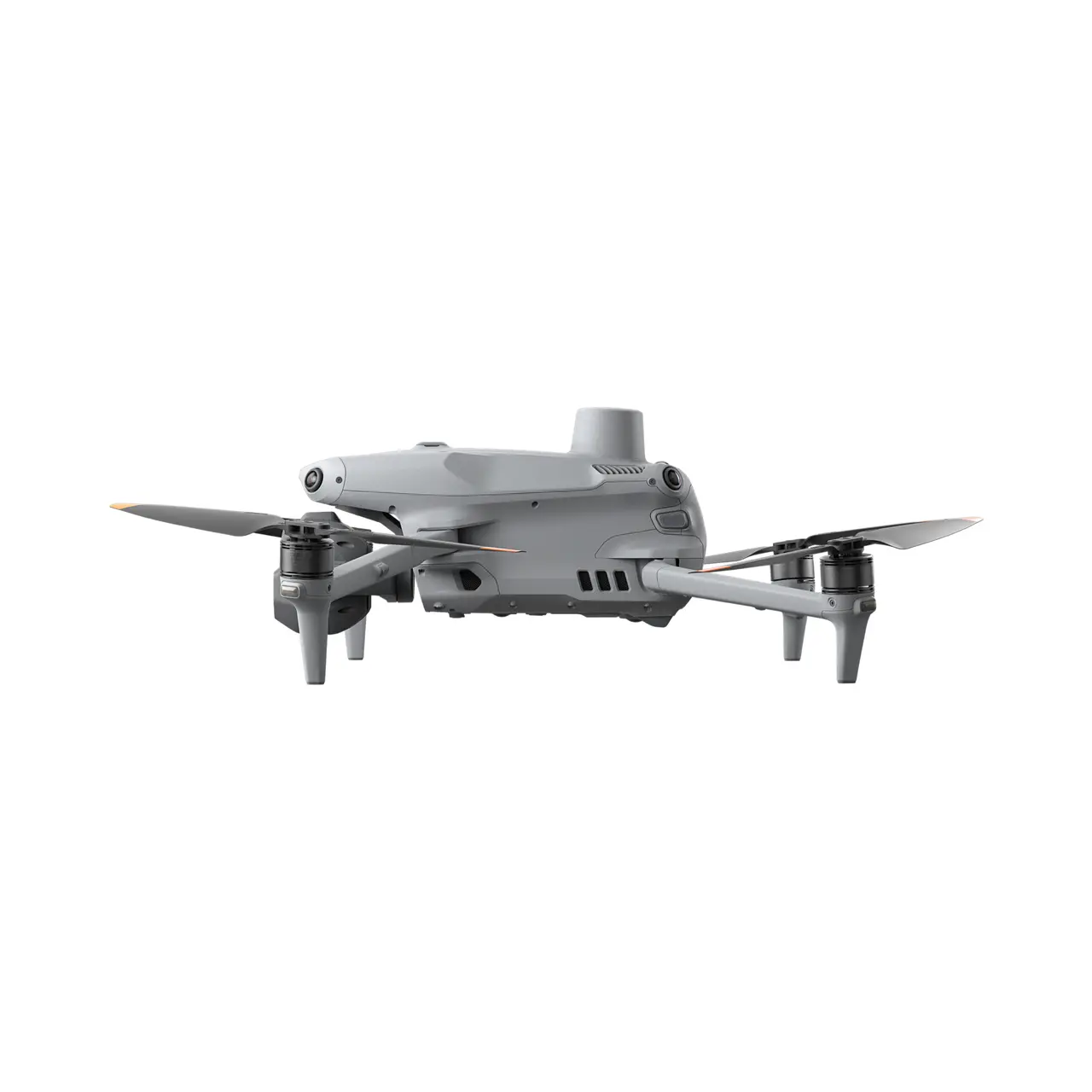

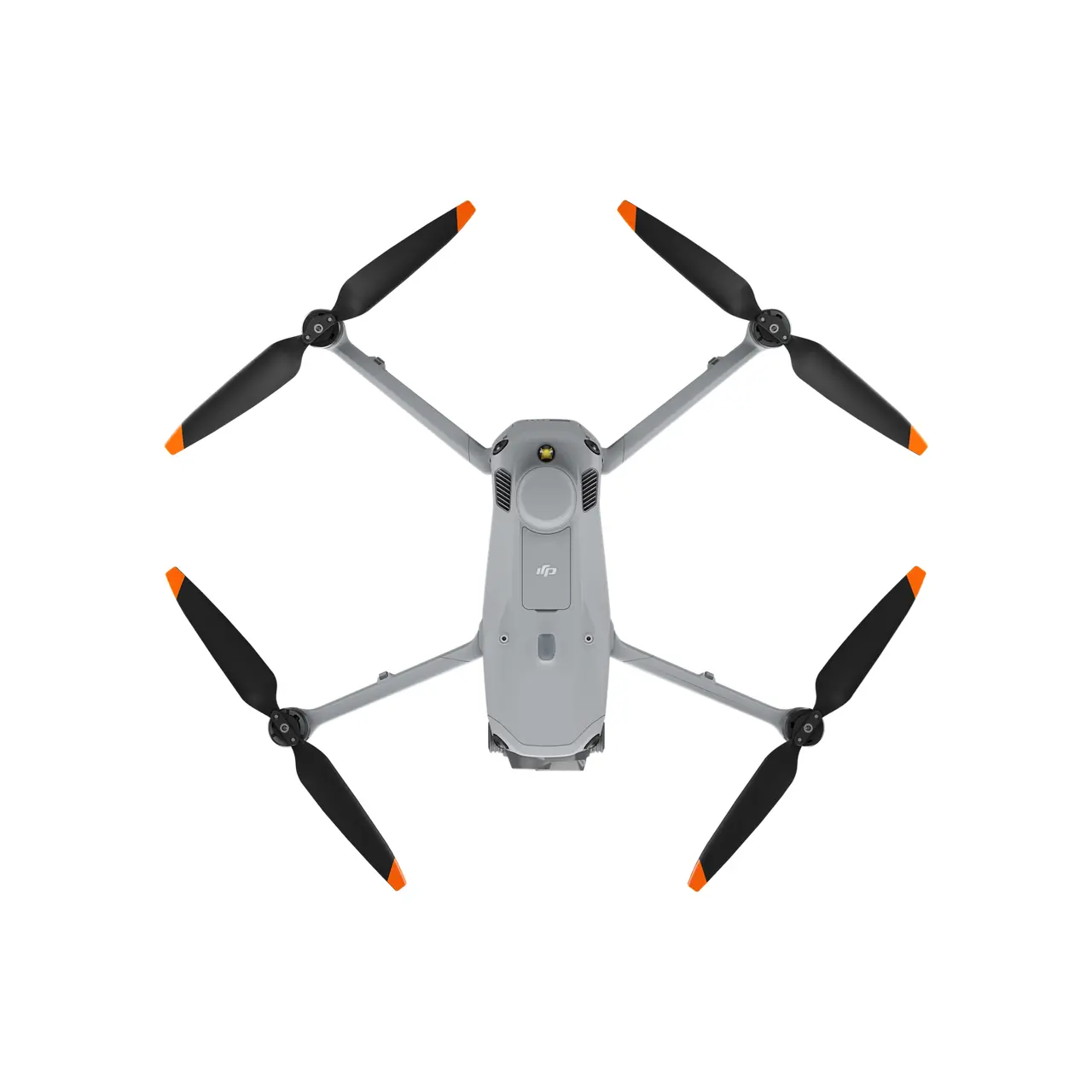

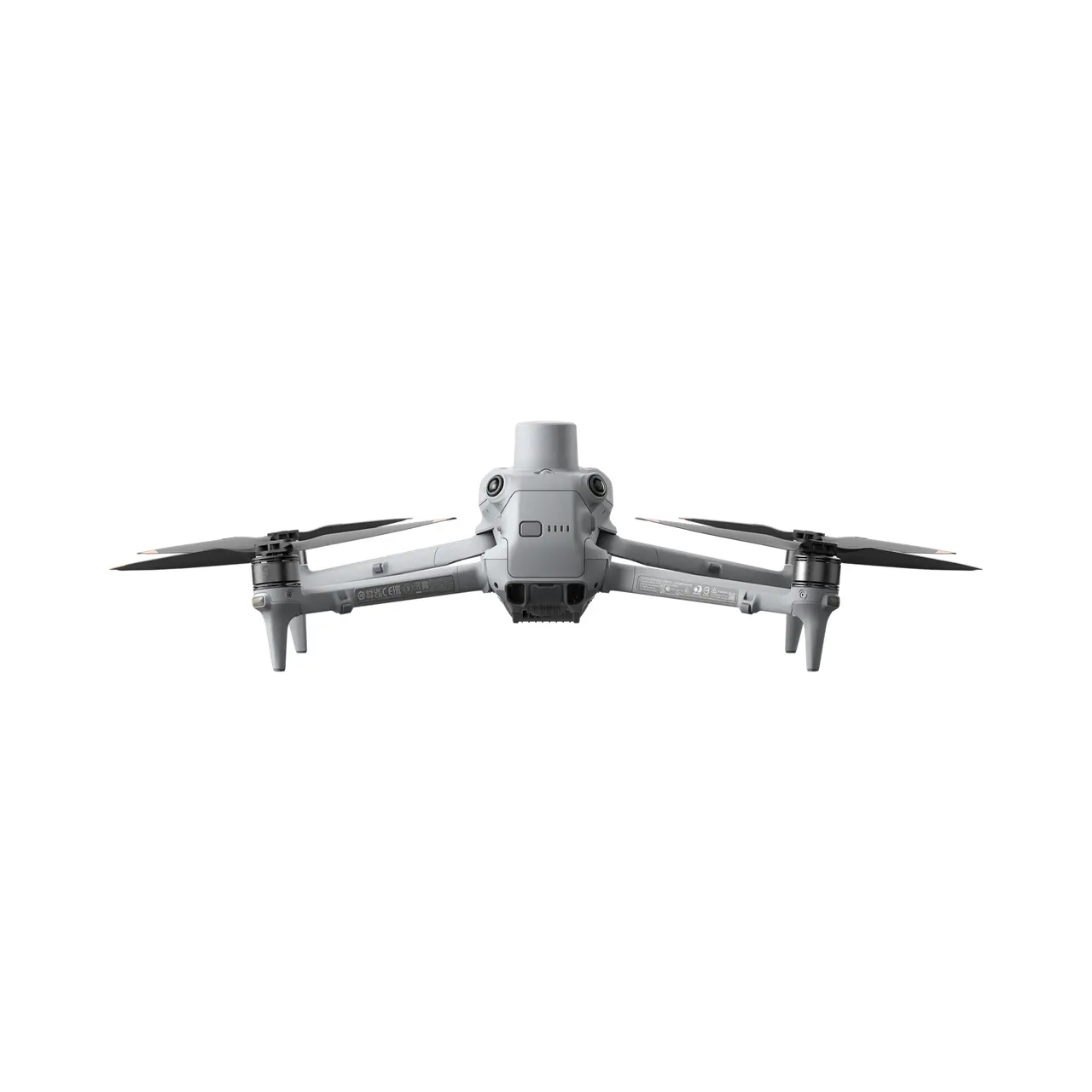

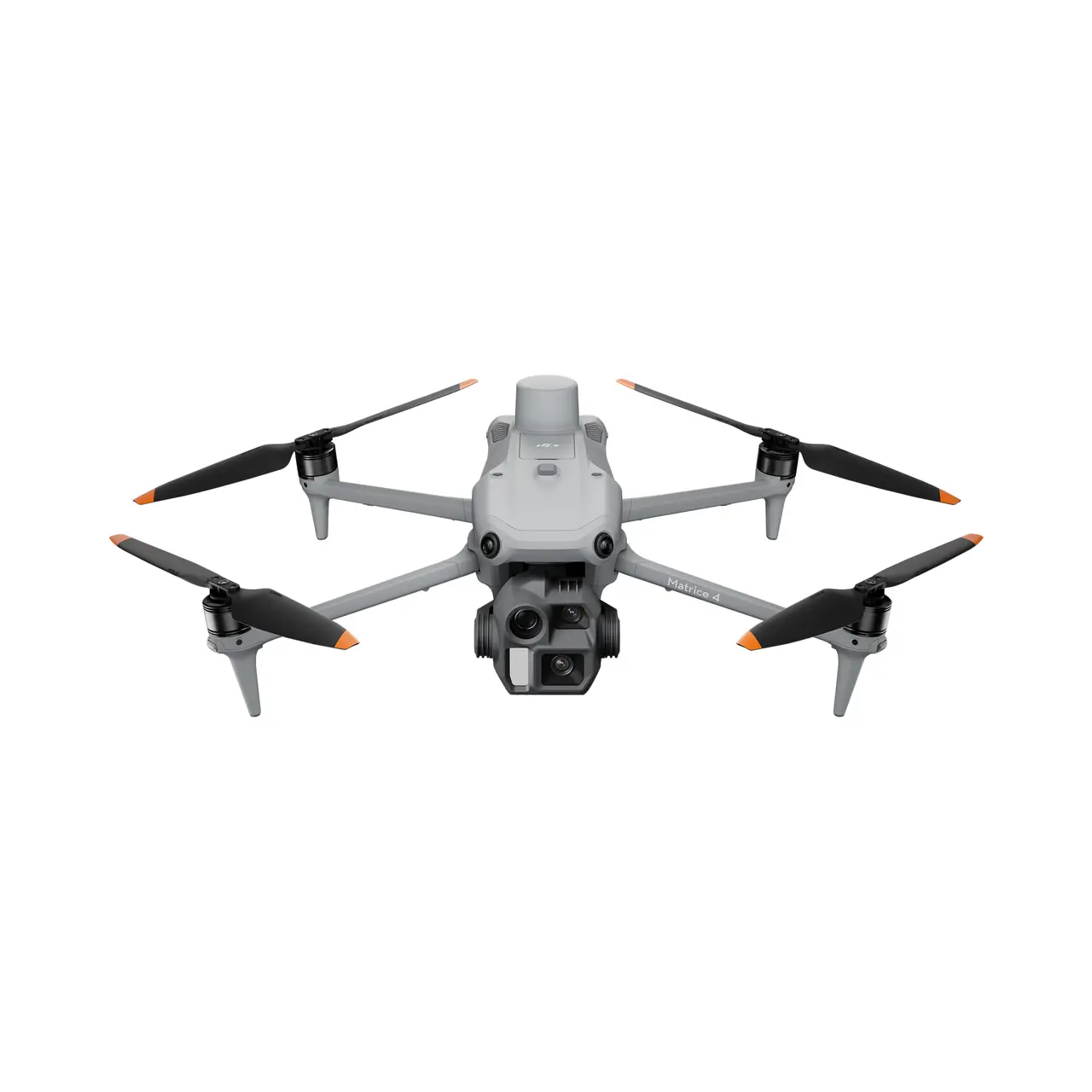

DJI Matrice 4E Mapping Drone

$7,395.00

Build a clearer picture of your property or worksite with the DJI Matrice 4E. Its mechanical-shutter mapping camera is designed for aerial image capture, while additional cameras help you inspect details from a distance. Choose the 4E for mapping, site documentation and repeatable survey workflows. Includes DJI Care Enterprise Plus, auto-activated.

Know your drone. Before you fly, check the CASA drone safety rules at knowyourdrone.gov.au.

SKU: DJIM4EPLUS Categories: ,
20 MP
Mapping camera
3
Visual cameras
as fast as
0.5 s
Capture interval
up to
49 min
Flight time

Specifications

Full manufacturer specifications for this model.

Cameras
Wide camera
4/3-inch CMOS, 20 MP
Shutter
Mechanical shutter on the wide camera
Additional visual cameras
Medium tele and tele cameras
Positioning and mapping
RTK
Built-in; suitable corrections required
Capture interval
As fast as 0.5 seconds
Aircraft and power
Maximum flight time
Up to 49 minutes with standard propellers under DJI test conditions; actual flight time varies
Flight-time conditions
Windless flight at approximately 9 m/s, no payload, measured to 0% battery; allow a safe operating reserve
Battery energy
99.5 Wh
Charging hub
100W; four batteries charged sequentially
Controller and operation
Remote controller
DJI RC Plus 2 Enterprise with O4 Enterprise transmission
Water exposure
Not waterproof; follow DJI operating instructions

What's in the box

DJI Matrice 4E aircraft
×1

DJI Matrice 4E aircraft

O4 Enterprise transmission with GNSS and vision positioning. Transmission performance depends on regional settings and operating conditions.

DJI Matrice 4 Series Battery
×1

DJI Matrice 4 Series Battery

DJI RC Plus 2 Enterprise remote controller
×1

DJI RC Plus 2 Enterprise remote controller

DJI 100W USB-C Power Adapter
×1

DJI 100W USB-C Power Adapter

DJI Matrice 4 Series Charging Hub
×1

DJI Matrice 4 Series Charging Hub

microSD Card
×1

microSD Card

DJI Matrice 4E Gimbal Protector
×1

DJI Matrice 4E Gimbal Protector

DJI Cellular Dongle 2 Pry Bar
×1

DJI Cellular Dongle 2 Pry Bar

DJI Matrice 4 Series Propellers
×3

DJI Matrice 4 Series Propellers

100W Power Adaptor AC Cable
×1

100W Power Adaptor AC Cable

USB-C to USB-C Data Cable
×1

USB-C to USB-C Data Cable

USB-A to USB-C Data Cable
×1

USB-A to USB-C Data Cable

DJI Matrice 4 Series Storage Case
×1

DJI Matrice 4 Series Storage Case

DJI Matrice 4 Series Storage Case Shoulder Strap
×1

DJI Matrice 4 Series Storage Case Shoulder Strap

DJI Care Enterprise Plus (DJI Matrice 4E)
×1

DJI Care Enterprise Plus (DJI Matrice 4E)

A practical view of your property and worksite

The Matrice 4E helps turn an aerial flight into useful visual records. Capture imagery for property planning, document changes across a worksite, or build a repeatable image collection for your mapping workflow.

For buyers deciding between the two models, the key distinction is the job: choose the 4E when mapping is the priority. If you need to investigate heat patterns or support search work, compare the Matrice 4T.

Designed around mapping capture

The wide camera combines a 4/3-inch sensor with a mechanical shutter. That shutter is a useful advantage when collecting mapping imagery while moving. Built-in RTK supports a positioning workflow using suitable corrections; the accuracy of the finished map also depends on capture planning, control, processing and checks.

Tell us what you need to produce before choosing a package. A visual site record, a volume calculation and a deliverable with defined accuracy requirements can call for different workflows and software.

Plan the whole field kit

A useful kit starts with the aircraft and the job it needs to do. Consider the number of batteries, how you will recharge on site, how you will obtain positioning corrections, and which software will process your images. We can discuss these requirements before you order.

Review the itemised box contents on this page to see what this configuration includes. Optional equipment shown in application photographs is not automatically part of the supplied kit.

Supplied with DJI Care Enterprise Plus

This configuration includes DJI Care Enterprise Plus, auto-activated. Coverage is subject to the applicable plan, activation requirements and service limits. Contact East Coast Drones to confirm the cover period and terms supplied with your aircraft.

Talk through your application

Not sure whether the 4E is right for your property or business? Contact East Coast Drones with the area you need to cover, the type of output you want and your current equipment. We can help you compare the aircraft and discuss a suitable configuration.

Ask about the Matrice 4E.

DJI Dock 3 uses the separate Matrice 4D and 4TD family. The 4E is not a Dock 3 aircraft.

Description

The DJI Matrice 4E is a mapping-focused enterprise aircraft. Explore its camera features, practical applications and supplied kit above. DJI Care Enterprise Plus is included, subject to the applicable plan terms.
