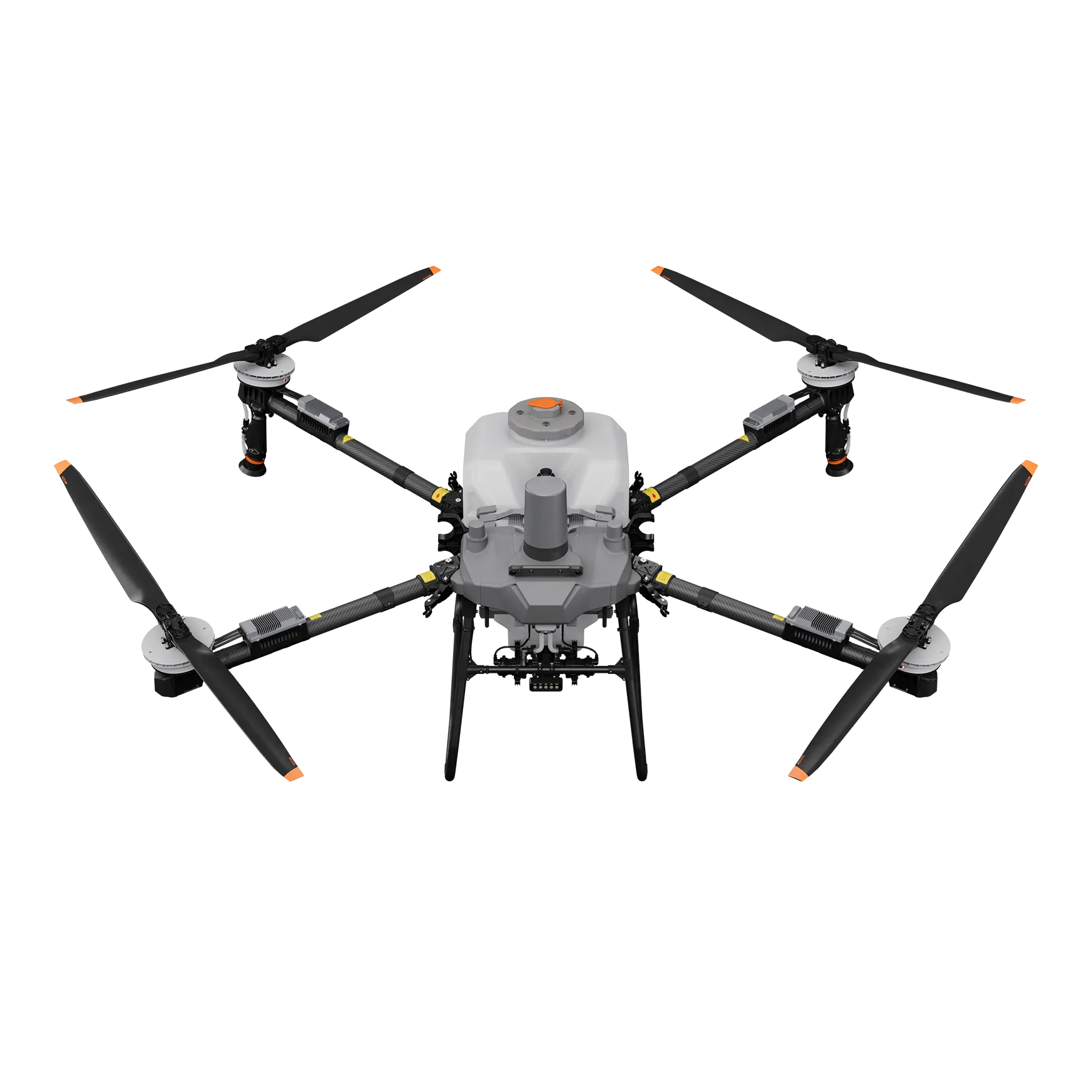

Name: DJI Agras T100 Set 2: Complete Spraying Package (C12000 3-Phase Fast Charger)
Brand: DJI
SKU: DJIAGT100SET2
Price: 45000.00 AUD
Availability: InStock

DJI Agras T100 Set 2: Complete Spraying Package (C12000 3-Phase Fast Charger)

$45,000.00

DJI Agras T100 Set 2 includes the C12000 charger for a suitable three-phase power supply, with charging output up to 12,000 W. Both sets include the T100 aircraft, 100 L spraying system, DB2160 air-cooled heat sink and three DB2160 flight batteries.

Choose Set 2 for higher charging output with three-phase power, or Set 1 for the C10000 charger with up to 9,000 W output on a compatible single-phase setup. Set 2 also includes the DJI TKPL 2 remote controller, WB37 battery and charging hub, and 65 W controller charger.

Know your drone. Before you fly, check the CASA drone safety rules at knowyourdrone.gov.au.

SKU: DJIAGT100SET2 Categories: Agras T100, Agricultural Drones

Specifications

Full manufacturer specifications for this model.

Max payload

100 kg

Top flight speed

20 m/s

Spray tank

100 L

Spraying system

Dual atomising centrifugal sprinklers with a rear four-sprinkler array that widens coverage for orchard work

Spray width

5-13 m effective

Droplet size

50-500 μm adjustable

Mist sprinkler (optional)

Water-cooled, with droplets as fine as 50 μm for canopy penetration and leaf-underside coverage; the liquid flow path also dissipates heat from the dual centrifugal motors

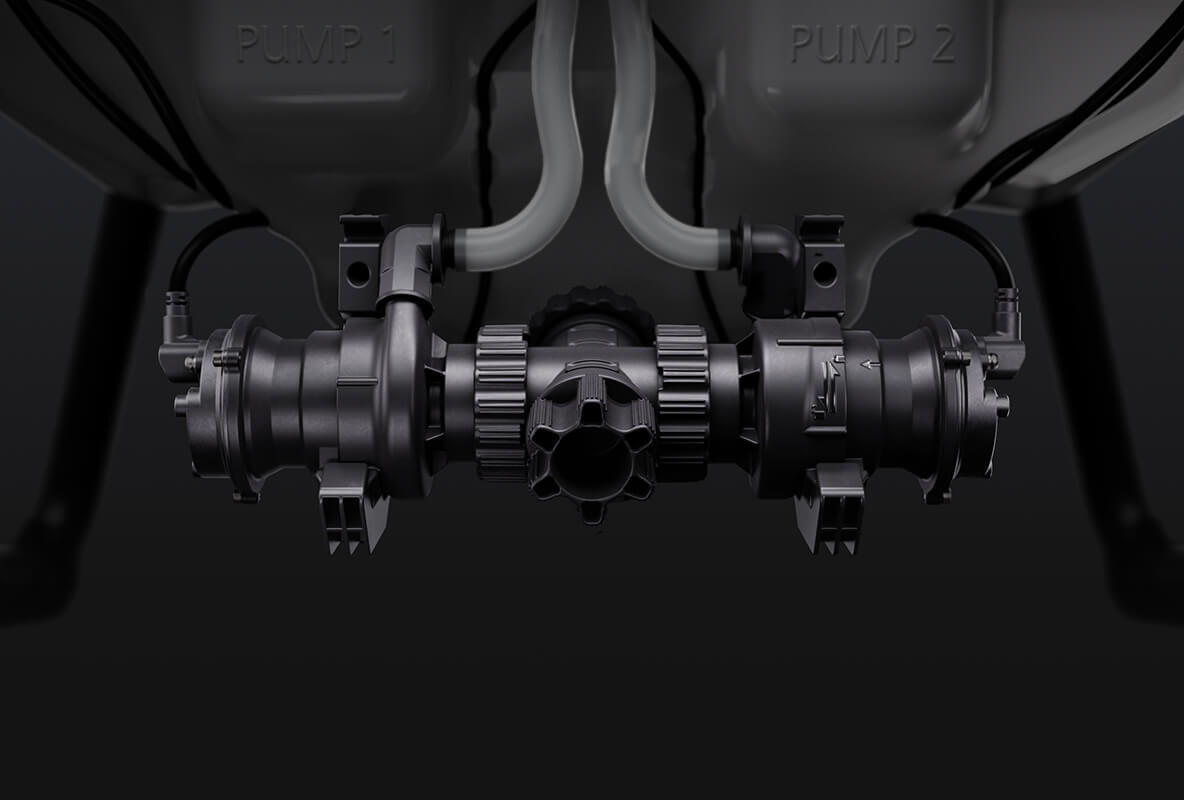

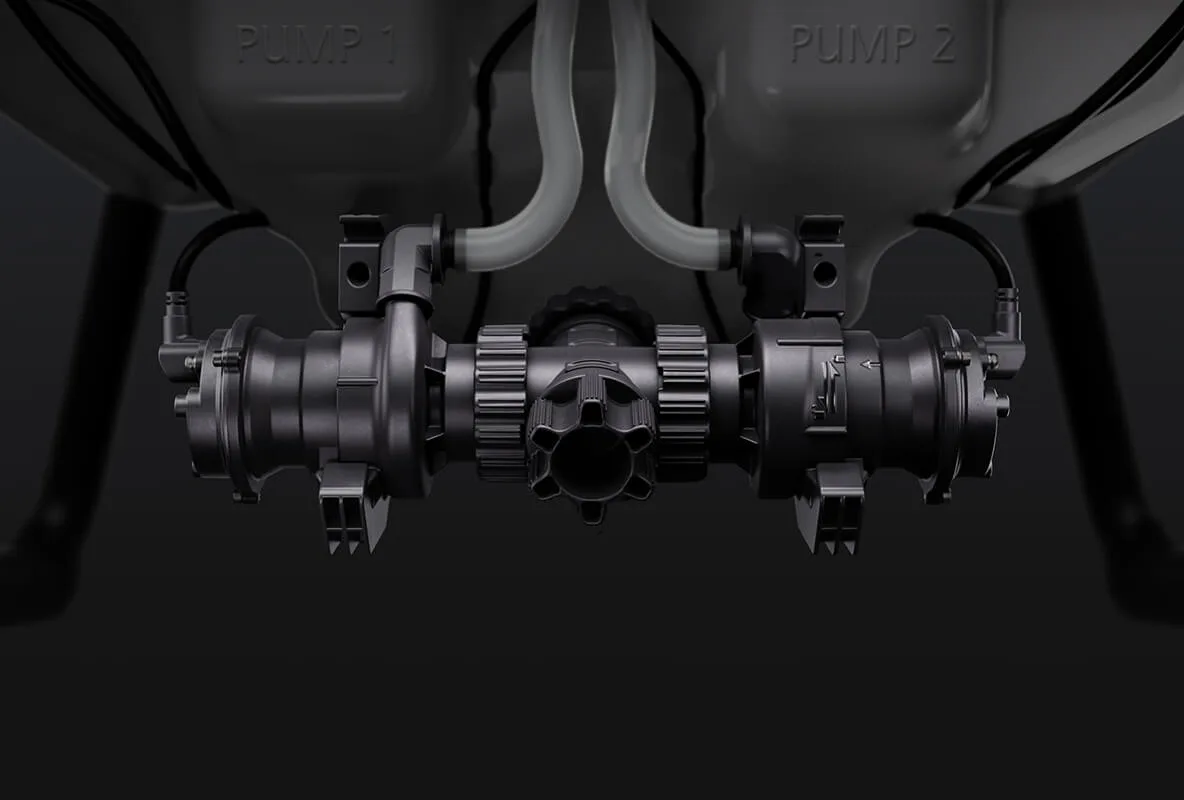

Pumps

Magnetic drive impeller, corrosion-resistant, with an optimised impeller structure and increased chamber volume for orchard flow demands

Flow meter

Dual-channel electromagnetic, non-contact to prevent corrosion

Spreading (optional 150 L system)

Hopper capacity

150 L (100 kg)

Discharge rate

400 kg/min

Spreading width

10 m effective

Feeder options

Four interchangeable screw feeder sizes; the large and small feeders are optional

Extra-large feeder

75-750 kg/ha, 0.5-10 mm particle size; fertilisers, wheat seed, granular fungicides and feed

Large feeder (optional)

75-270 kg/ha, 4-10 mm particle size; rice seed and cover crop seed

Medium feeder

22.5-120 kg/ha, 4-6 mm particle size; rice seed

Small feeder (optional)

3-22.5 kg/ha, 0.5-4 mm particle size; rapeseed, granular herbicides, grass seed and granular insecticides

Weighing sensor

High-precision, showing remaining granular quantity in real time, calibrating flow rate automatically and saving operation templates to the cloud

Spreader disc

Centrifugal, with a stainless steel cap, for uniform spreading across the full flow range

Loading gate

Large aperture for bulk loading

Lifting

Max lift capacity

100 kg

Load handling

Auto balance control and real-time weighing, with automatic flight to loading and unloading points set via the RTK module and shown as an AR projection on the controller

Safety and sensing

LiDAR

Up to 300,000 spatial point-cloud points per second for a detailed view of complex terrain

Millimetre-wave sensing

Front unit performing 5,000 vertical airspace scans per second with 360° horizontal mechanical rotation, plus a rear unit for wider detection coverage

Optical sensing

Penta-Vision: a quad-camera array plus an FPV low-light full-colour camera with virtual gimbal, ultra-wide field of view and electronic image stabilisation, covering front, rear, left, right and below

Obstacle avoidance

Obstacle type detection, automatic obstacle position memory and intelligent bypassing, with improved detection of smaller obstacles and of power lines

Propeller stop protection

Fitted

Terrain following

Slopes up to 90° without prior mapping

Night lighting

Front-facing high beams and downward supplemental lighting in addition to the existing low beams

AR assistance

Real-time point-cloud display, people, vehicle and obstacle overlays, flight-route prompts and return-to-home projection

Reliability testing

700 hours, including real-flight ageing, accelerated component fatigue and extreme temperature evaluation

Operation

Automatic operation

Field planning, then one-click fully automatic operation from saved parameter templates, with smart return to home when spray runs out or battery runs low

Manual and multi-field

Plan multiple adjacent plots in one pass and operate continuously; one-click plot saving and one-click return to breakpoint; free flight paths for mixed crops, intercropping and paddy

Mapping

Up to 20 ha of large field or 10 ha of orchard per flight, reconstructed in real time on the controller

Propulsion

Rotor layout

Coaxial dual-rotor

Single-axis max thrust

82 kg

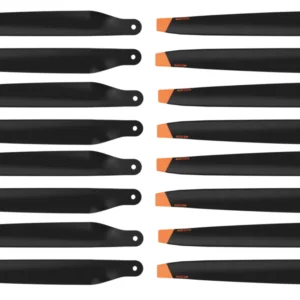

Propellers

62-inch carbon fibre with an optimised airfoil and increased diameter, resisting deformation at high temperatures

Speed controllers

420 A, paired with larger higher-torque motors for faster response

Power and control

Flight battery

DB2160: 41 Ah, 14.7 kg, 500 A high-power connector, ergonomic handle, triple air-channel cooling

Warranted charge cycles

1,500

Supplied charger

C12000 Intelligent Power Supply: tri-phase input, 12,000 W fast charging, adaptive power protection, 1.8 m cable

Remote controller (DJI TKPL 2)

7-inch high-brightness screen with backlit and customisable physical buttons

Video transmission

O4, with an optional O4 Relay for challenging signal conditions

Positioning

RTK high-precision module, with D-RTK 3 AG available as an option

What's in the box

×1

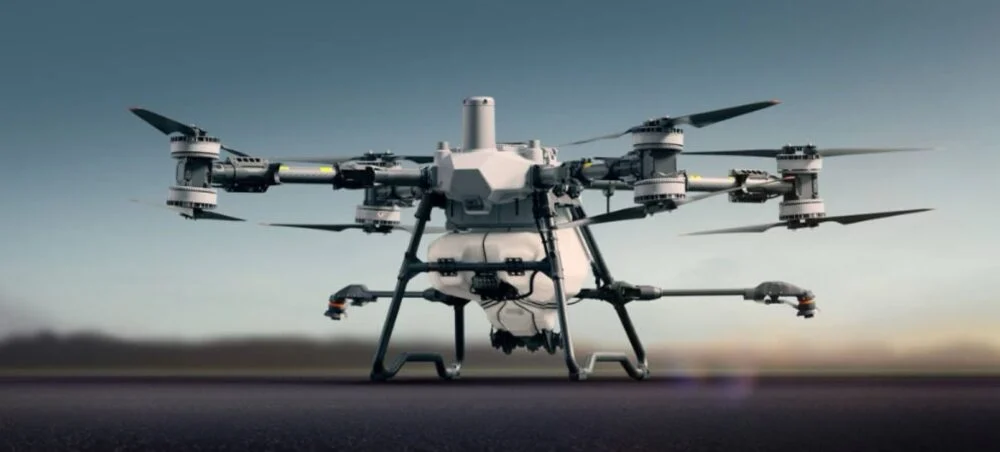

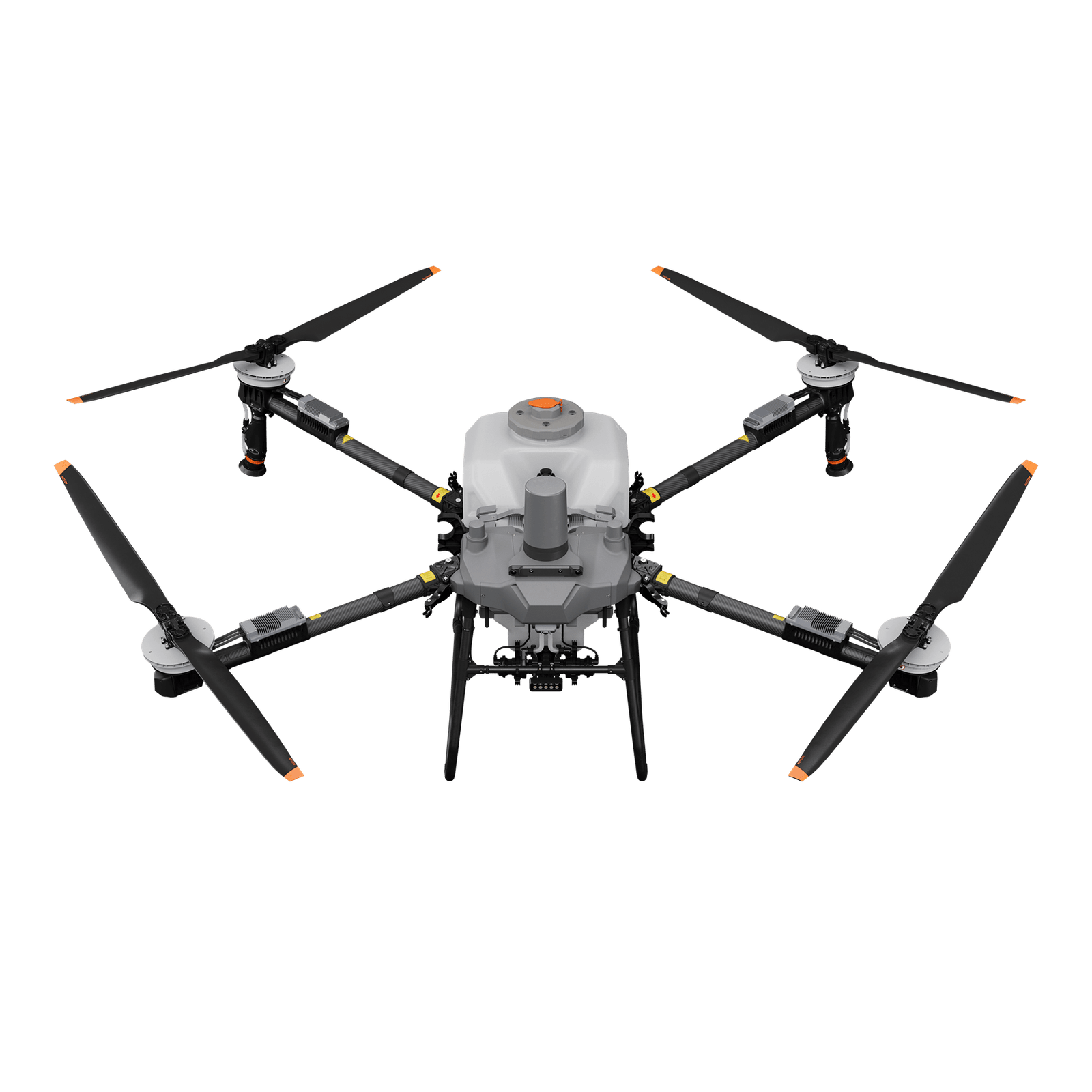

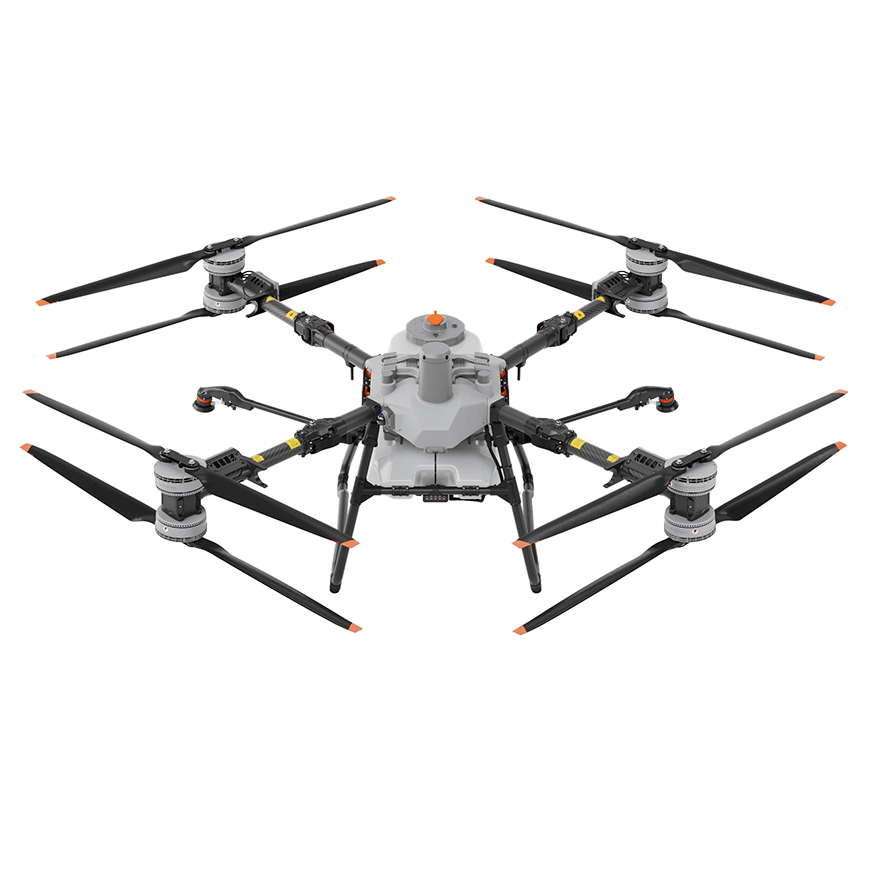

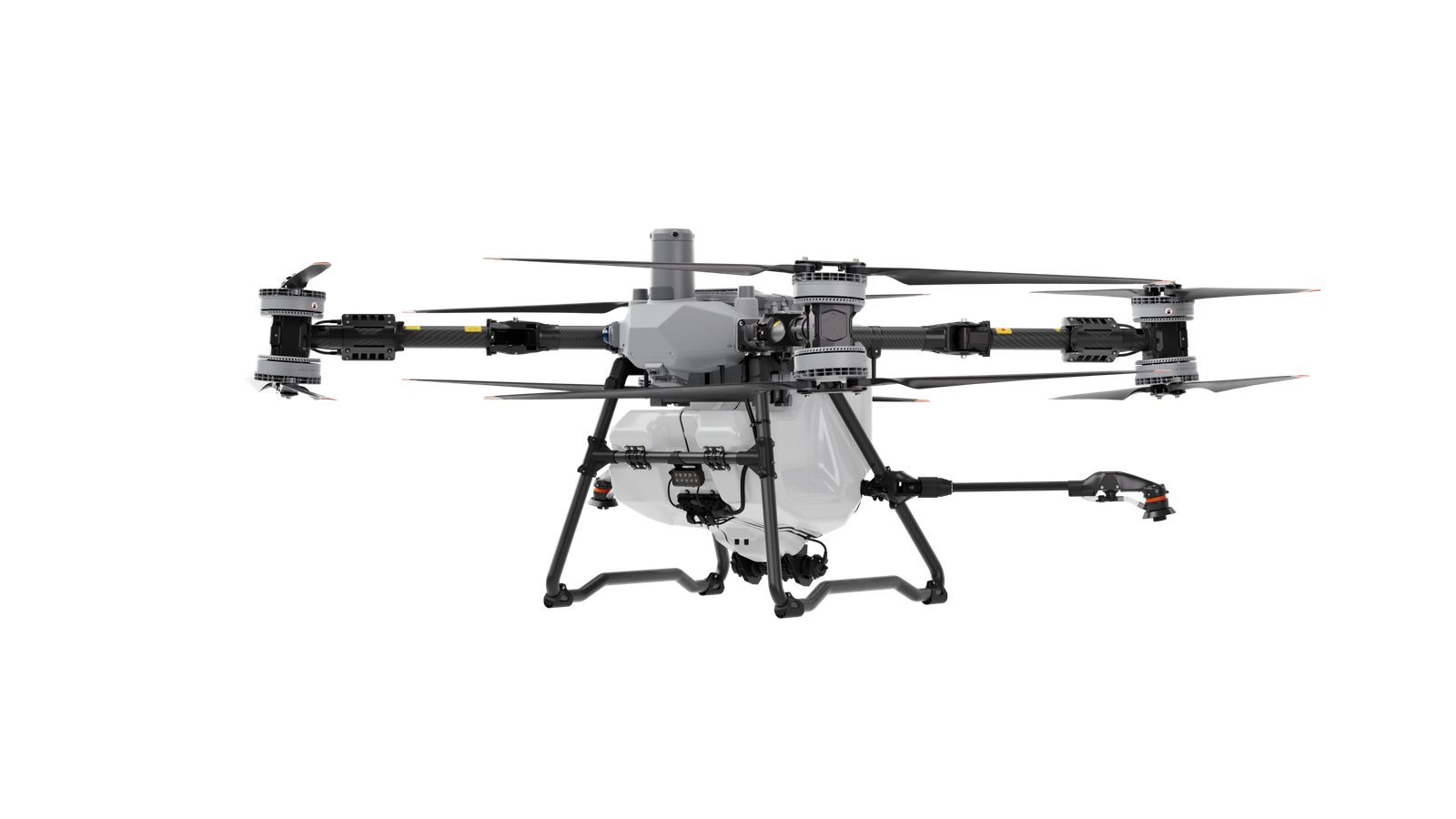

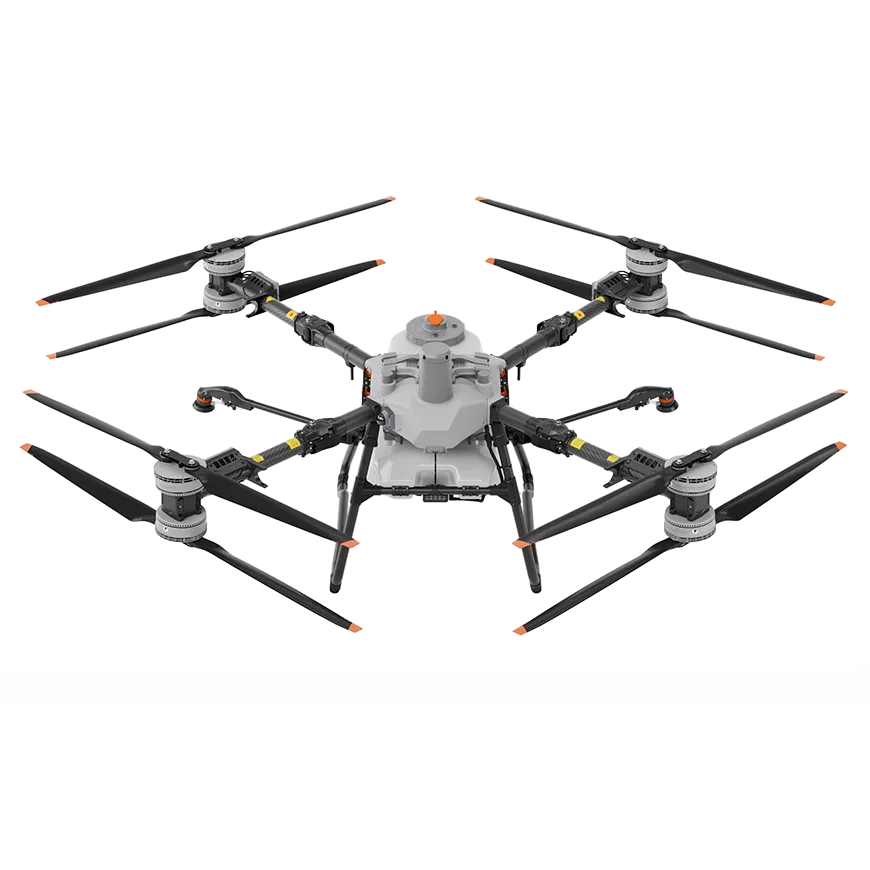

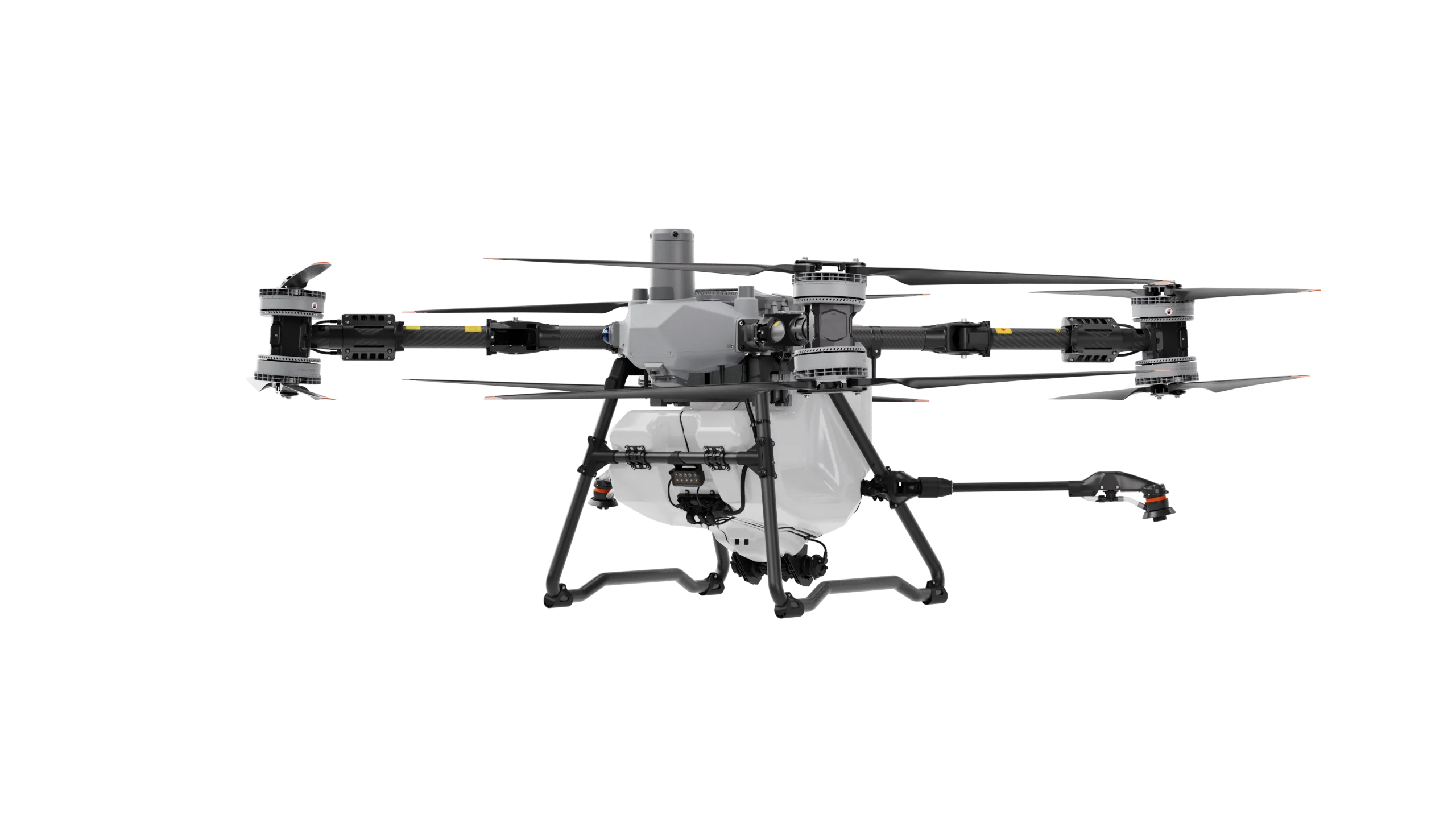

DJI Agras T100 aircraft

Intelligent airframe with dual atomising spraying system and air-cooled heat sink.

×1

DJI TKPL 2 remote controller

7-inch high-brightness screen with backlit and customisable physical buttons.

×3

DB2160 Intelligent Flight Battery

41 Ah, 14.7 kg each, 500 A high-power connector, 1,500 charge cycles under warranty.

×1

C12000 Intelligent Power Supply

Tri-phase power input, 12,000 W fast charging, adaptive power protection, 1.8 m charging cable.

×1

WB37 Controller Battery

4,920 mAh, 7.6 V LiPo, 37.39 Wh.

×1

WB37 Charging Hub

USB-C, 65 W PD fast charging.

×1

65 W controller charger

The complete Agras T100 package

The DJI Agras T100 Set 2 bundles DJI’s flagship agricultural drone with three-phase charging for operators running long days: the T100 aircraft with its 100 L spraying system and air-cooled heat sink, the DJI TKPL 2 remote controller, the C12000 intelligent power supply, three DB2160 intelligent flight batteries, and a WB37 controller battery with charging hub and 65 W charger. Three batteries in rotation with 12,000 W tri-phase charging keep the T100 in the air, not waiting on the ground.

Set 2 differs from Set 1 in the charger alone. Set 1 ships the single-phase C10000 at 9,000 W; Set 2 ships the tri-phase C12000 at 12,000 W. Choose Set 2 if you have three-phase power available at the shed or on the truck.

Description

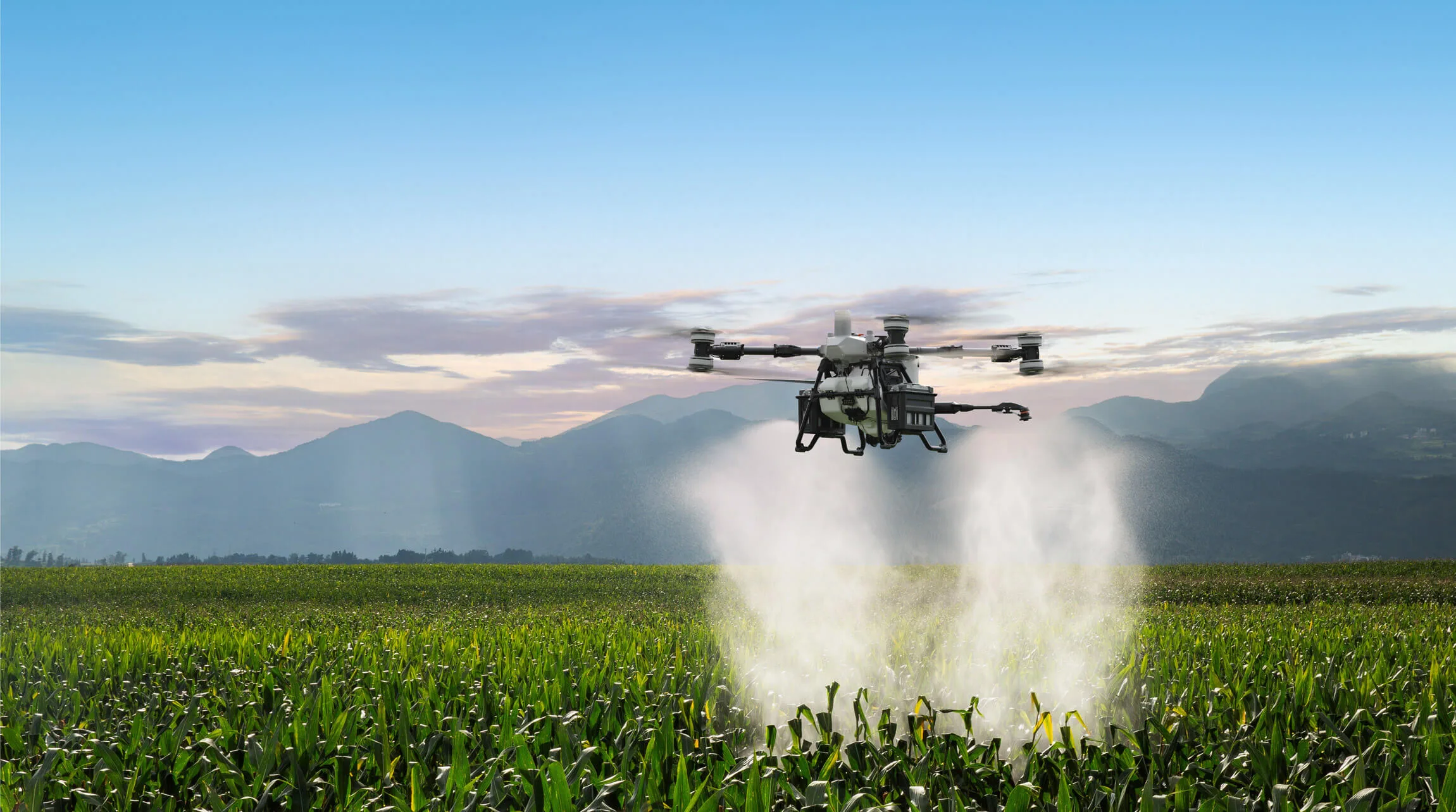

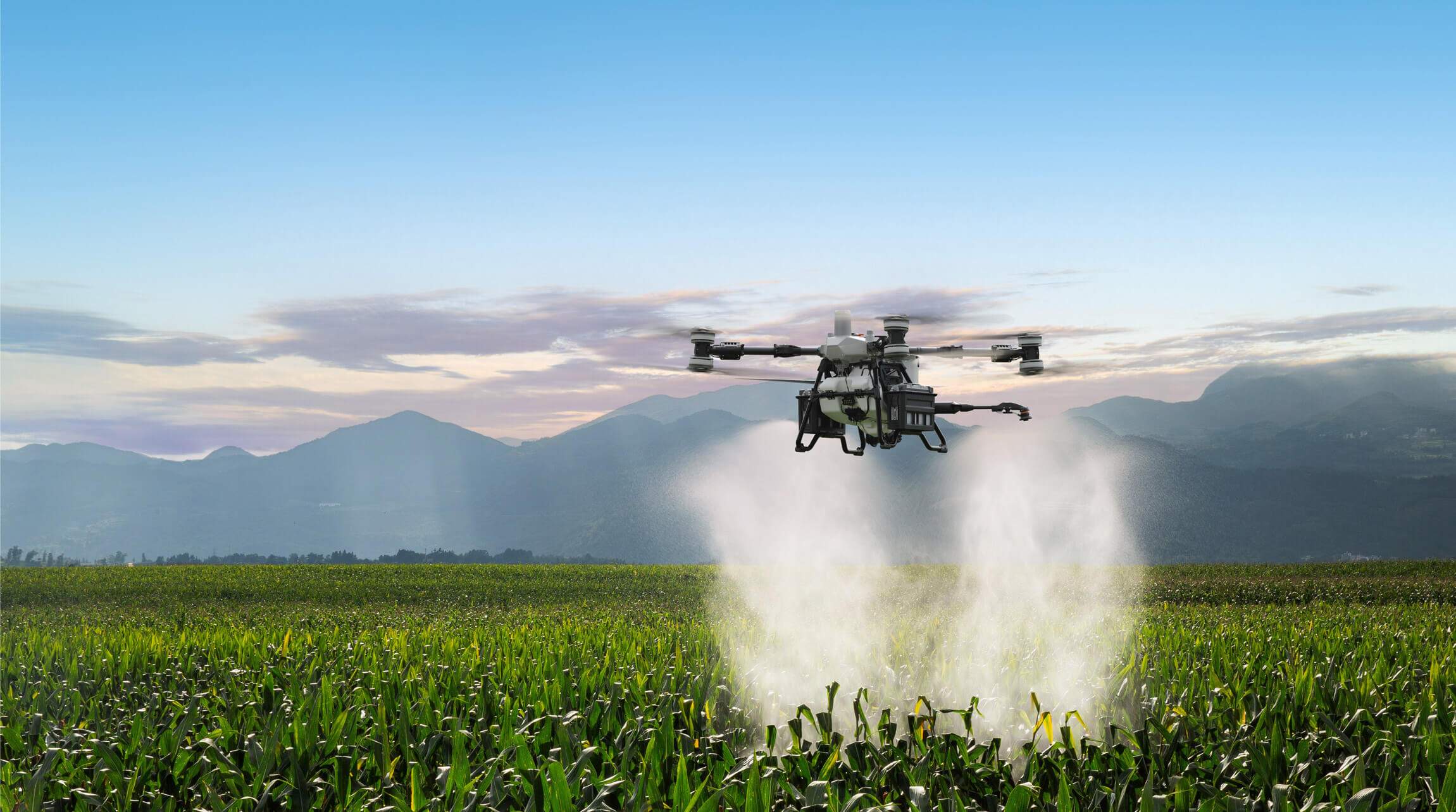

The DJI Agras T100 Set 2 is the complete spraying package for DJI’s flagship agricultural drone, built around a 100 kg max payload and a 20 m/s top flight speed. The 100 L spray tank and air-cooled heat sink come fitted to the aircraft, covering a 5-13 m swath per pass for fewer passes over broad-acre and orchard blocks alike.

Safety and sensing scale with the payload. LiDAR scanning up to 300,000 points per second, front and rear millimetre-wave radar, and a five-camera Penta-Vision optical array cover front, rear, left, right and below. The T100 also follows terrain on slopes up to 90 degrees without needing to pre-map the block first.

It charges via the C12000 3-phase intelligent power supply, delivering up to 12,000 W directly to the DB2160 flight batteries with no adapter cable required. Each battery is rated at 1,500 charge cycles.

This T100 also runs an optional 150 L spreading system for seeding and fertiliser work, sold separately. Contact East Coast Drones if you want to add spreading to this setup or need help choosing between Set 2’s three-phase C12000 charger and Set 1’s single-phase C10000. We operate these aircraft ourselves and can talk through the right configuration for your operation.

Brand

DJI

Model

Agras T100
