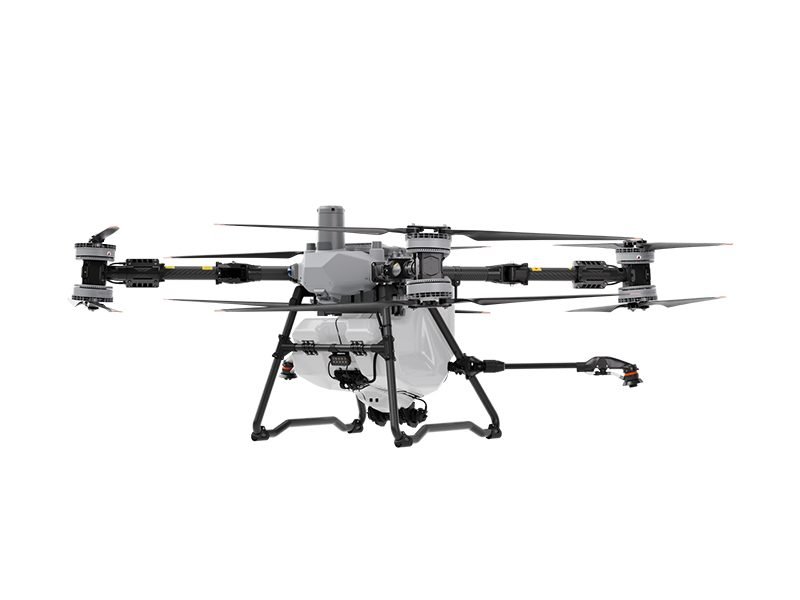

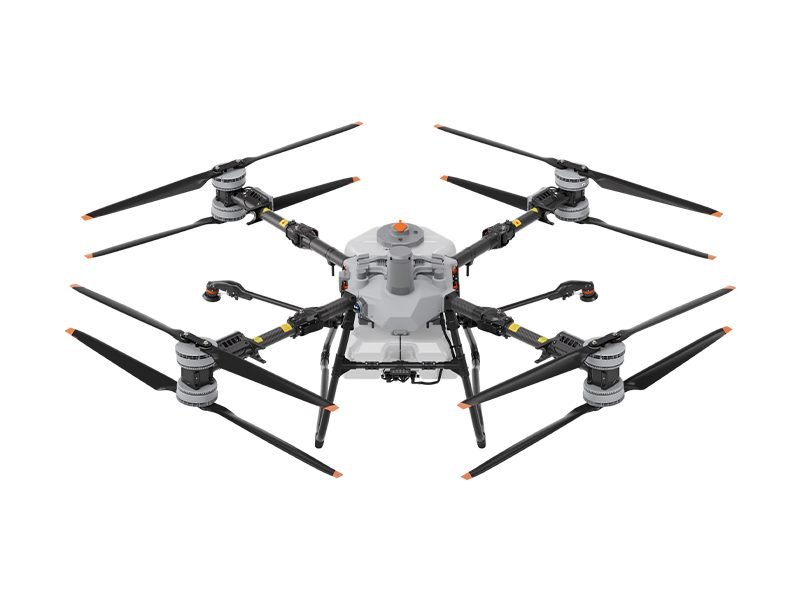

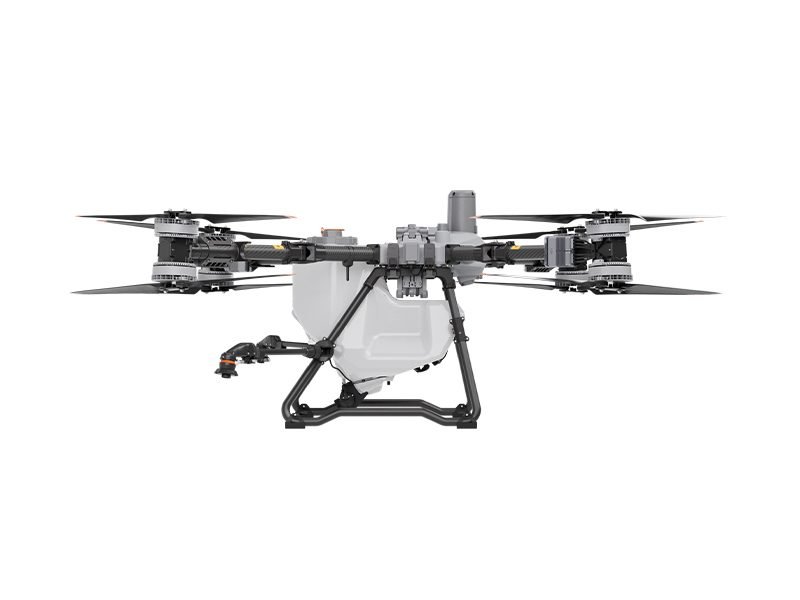

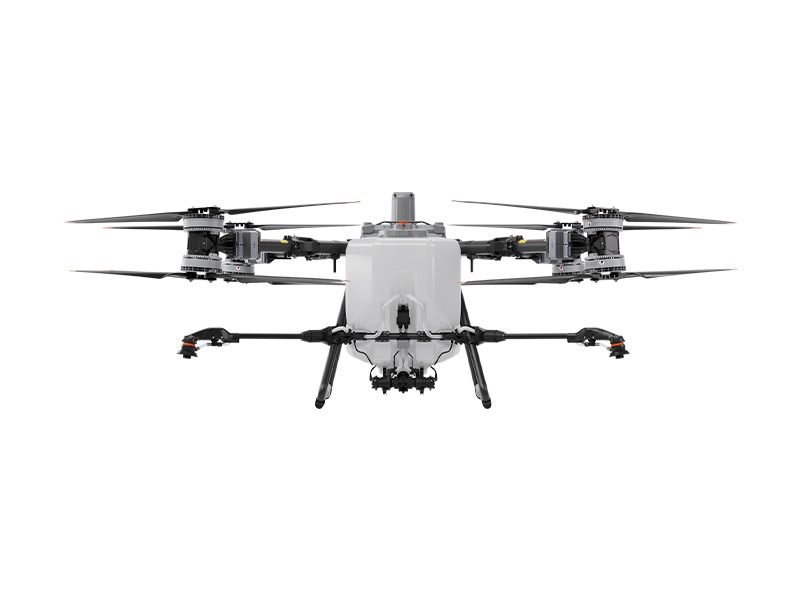

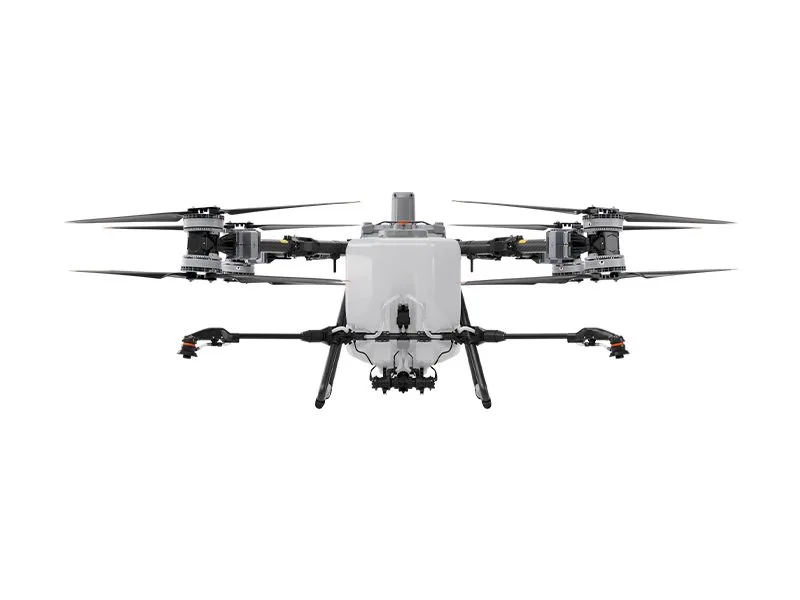

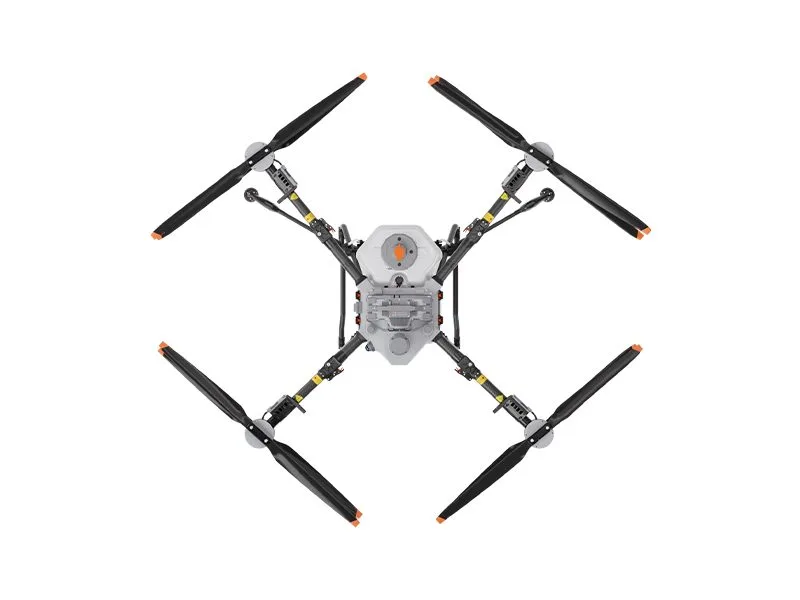

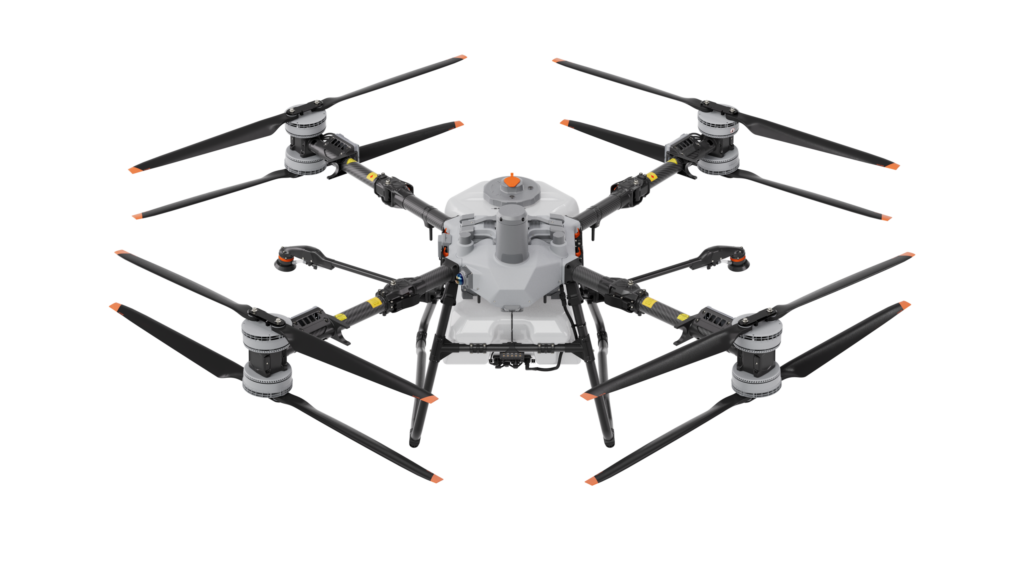

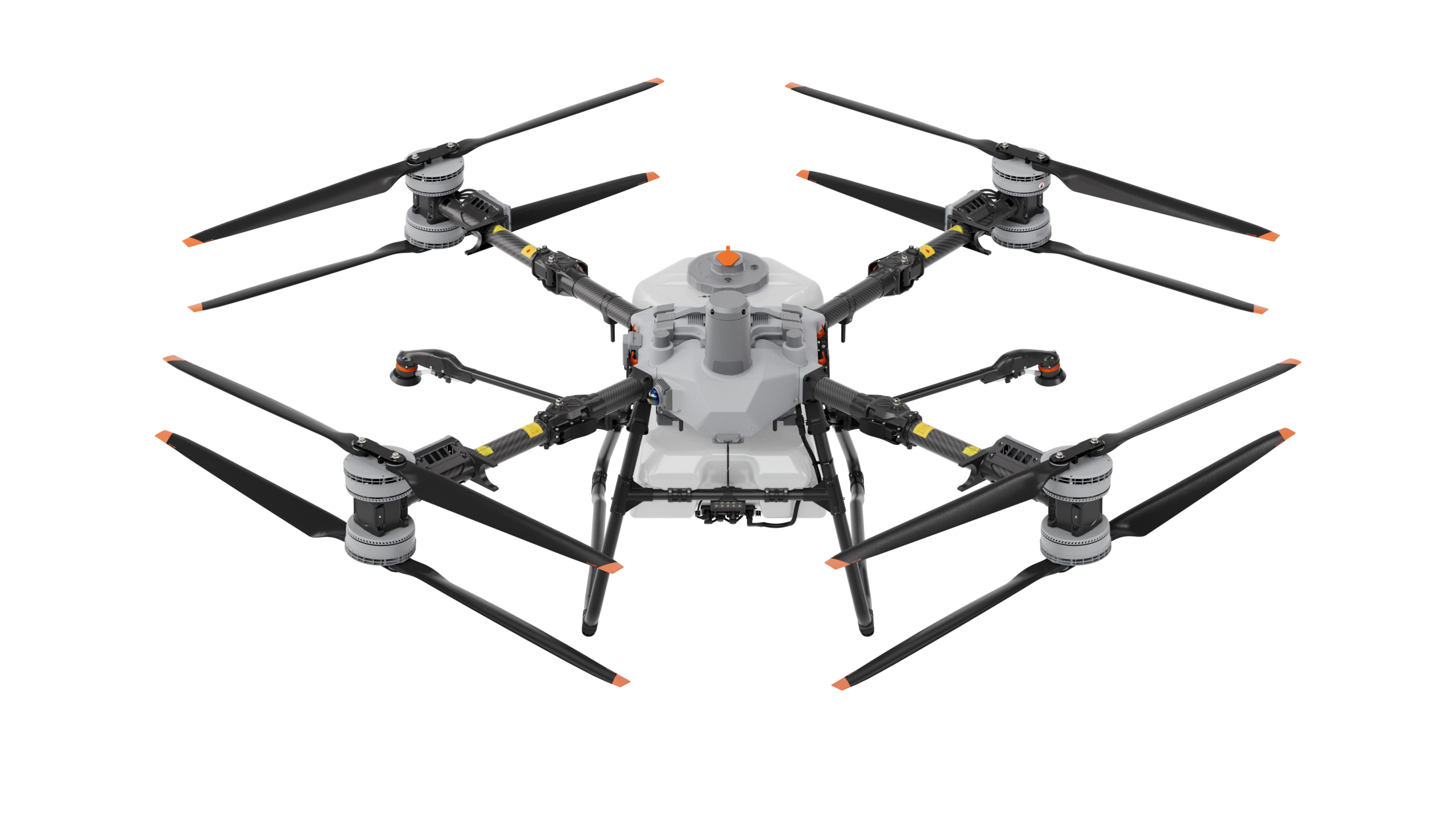

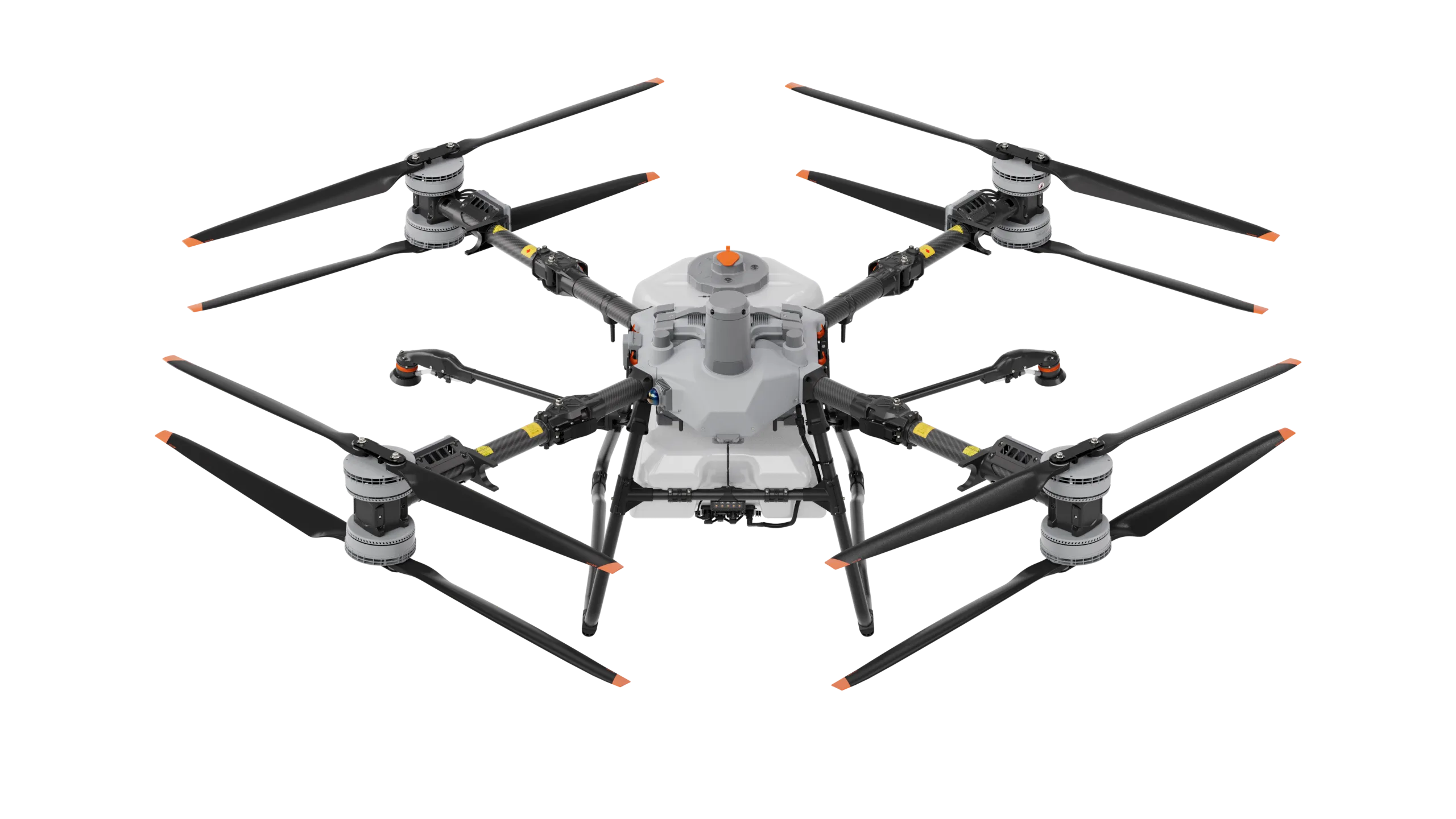

DJI Agras T100 aircraft and 100L Spraying System with Air-Cooled Heat Sink

$30,380.00

The DJI Agras T100 aircraft is bundled with the 100 L Spraying System and its air-cooled heat sink, DJI’s large-format agricultural spray platform for broad-acre and orchard work. Standard configuration sprays at up to 30 L/min through two rear nozzles, upgradeable to four nozzles and 40 L/min with the separately sold Mist Nozzle Package. This bundle includes the T100 airframe, DJI RC Plus 2 remote controller and propellers; the flight battery (DB2160) and charger are sold separately.

Know your drone. Before you fly, check the CASA drone safety rules at knowyourdrone.gov.au.

SKU: DJIAGT100 Categories: ,
100 L
Spray tank
90 kg
Operating payload
up to, with the optional Mist Nozzle Package
40 L/min
Max spray flow
at sea level, with the Mist Nozzle Package fitted
149.9 kg
Max takeoff weight

Specifications

Full manufacturer specifications for this model.

Spraying system (100 L)
Spray tank
100 L
Operating payload
90 kg
Nozzles
Two rear as standard, upgradeable to four with the optional Mist Nozzle Package
Max flow rate
30 L/min with two nozzles; 40 L/min with the optional Mist Nozzle Package
Droplet size
50-500 micron with two nozzles; 10-500 micron with the Mist Nozzle Package
Swath width
5-11 m
Cooling
Air-cooled heat sink at the battery bay for sustained high-output spraying
Aircraft
Weight
58.3 kg excluding battery; 73 kg including one DB2160 battery
Max takeoff weight
148 kg by default; 149.9 kg with the Mist Nozzle Package, at sea level
Dimensions
3200 x 3224 x 975 mm with arms and propellers unfolded; 1105 x 1265 x 975 mm fully folded
Max horizontal speed
13.8 m/s
Motor and propellers
60 rpm/V motors with 62 in propellers, 8 pairs
Sensing and safety
Phased array radar
Yes, front and rear coverage
Binocular vision system
Yes
LiDAR sensing
Yes
Obstacle sensing range
Up to 60 m at up to 13.8 m/s
Remote controller and transmission
Remote controller
DJI RC Plus 2
Video transmission
DJI O4, with 4G enhancement supported on both controller and aircraft
Battery and charging (sold separately)
Flight battery
DJI DB2160 - 41,000 mAh, 2132 Wh
Charger
DJI C10000 or C12000 Intelligent Power Supply
Charging time (20-95%)
8-9 minutes with the C10000; 8 minutes with the C12000

What's in the box

T100 aircraft
×1

T100 aircraft

Intelligent airframe with the DJI RC Plus 2 remote controller and propellers.

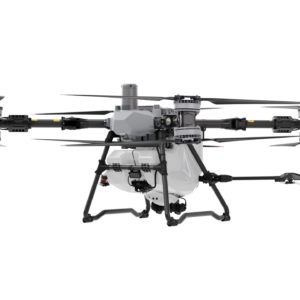

100 L Spraying System
×1

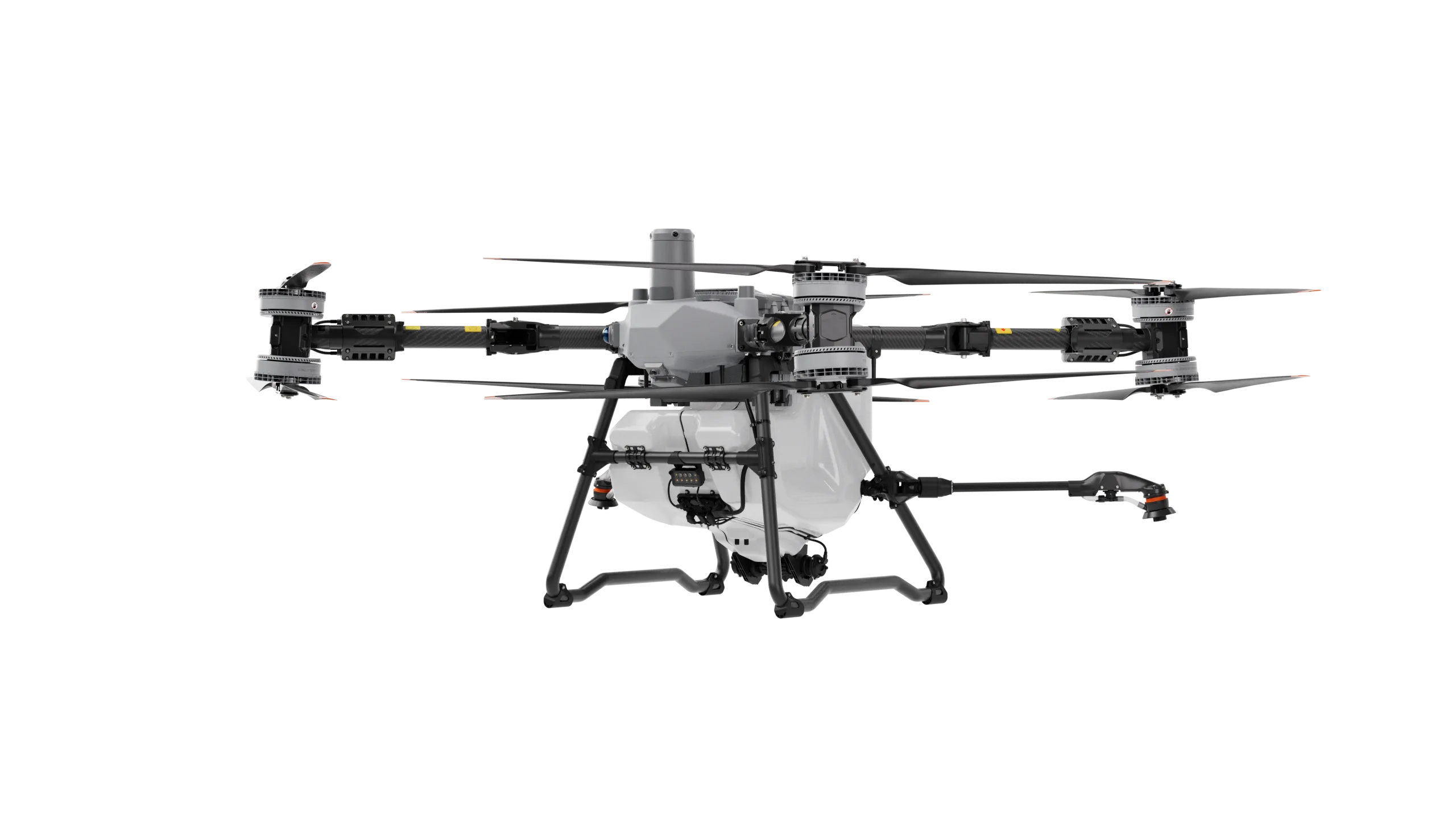

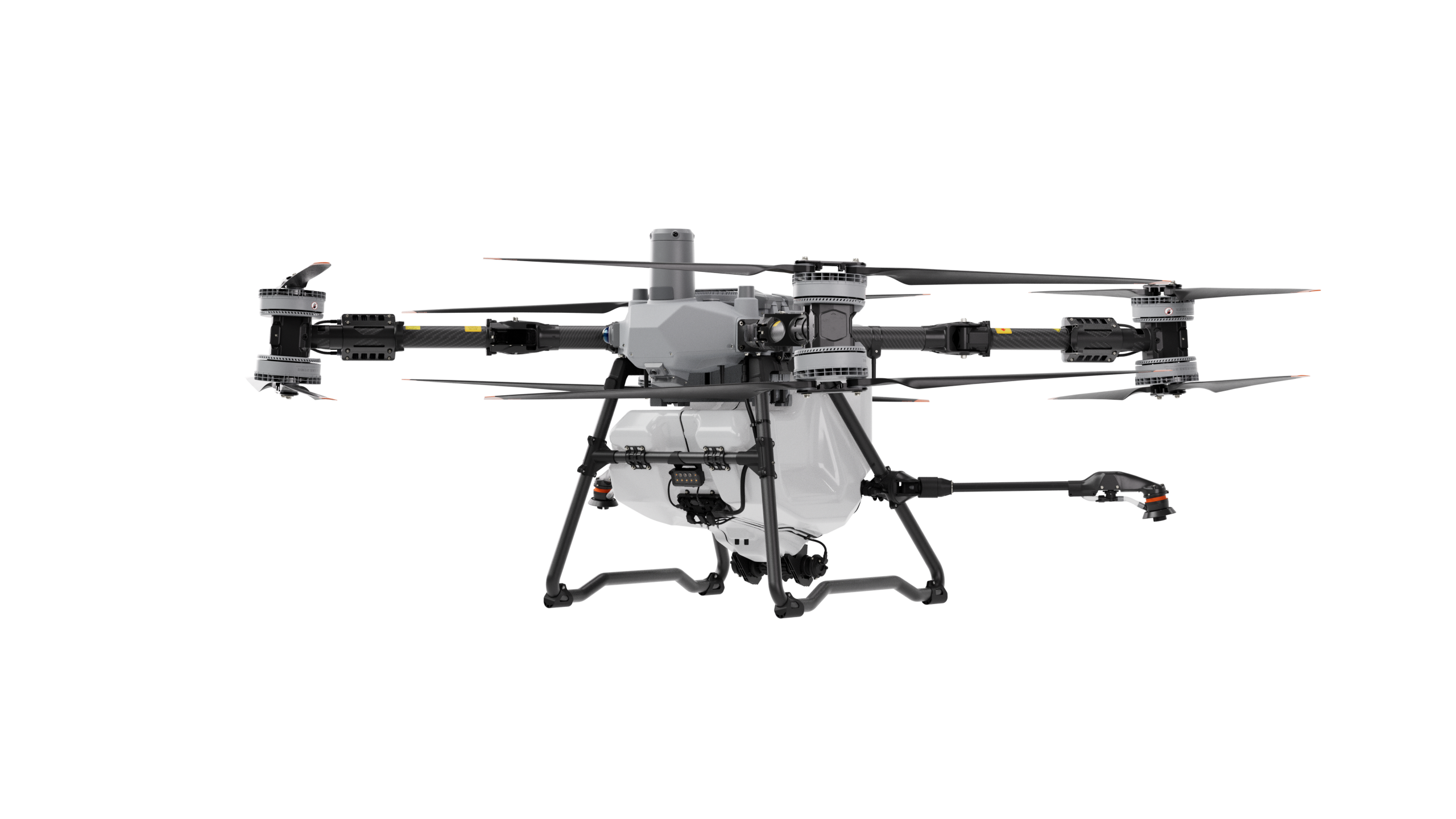

100 L Spraying System

100 L spray tank on the standard dual-spray-bar mount. Upgradeable to the four-nozzle Mist Nozzle Package for up to 40 L/min flow.

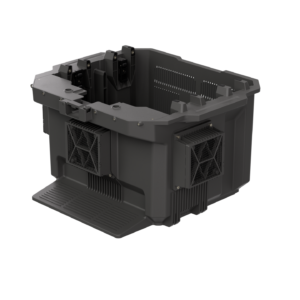

Air-cooled heat sink
×1

Air-cooled heat sink

Cools the DB2160 flight battery during sustained high-output spraying runs.

Large-format spraying built in

The T100 pairs DJI’s largest agricultural airframe with a 100 L spray tank on the standard dual-spray-bar mount, giving broad-acre operators and orchard sprayers a large-format platform. The included air-cooled heat sink keeps the DB2160 flight battery within its operating temperature range during sustained high-output runs, so back-to-back flights in hot conditions do not throttle performance.

Standard spraying delivers up to 30 L/min through two rear nozzles; growers wanting deeper canopy penetration or a higher flow rate can add the DJI Agras T100 Mist Nozzle Package (sold separately) for four nozzles and up to 40 L/min.

This bundle covers the airframe and spraying system only: the DB2160 flight battery and C10000/C12000 charger are sold separately, as is the four-nozzle Mist Nozzle Package. Want a full ready-to-fly kit, or help specifying the right battery and charger combination? Contact East Coast Drones. We operate these aircraft ourselves and can talk through the right configuration for your operation.

Spare parts for the Agras T100

Exploded diagrams, part numbers and prices. Add straight to your cart.

Description

The DJI Agras T100 is DJI’s flagship large-format agricultural drone, built for broad-acre crop protection and precision orchard spraying at a scale beyond the T50. This bundle pairs the T100 airframe with the 100 L Spraying System and its air-cooled heat sink, DJI’s standard dual-spray-bar configuration for continuous high-volume application. A 90 kg operating payload and a 13.8 m/s top speed mean fewer refill stops and more ground covered per flight.

Safety systems carry over from the wider T100 platform. Phased array radar with front and rear coverage, binocular vision and LiDAR sensing give obstacle avoidance out to 60 m at speeds up to 13.8 m/s. It pairs with the DJI RC Plus 2 remote controller over O4 video transmission.

This bundle includes the T100 airframe, remote controller and propellers, plus the 100 L Spraying System with its air-cooled heat sink. The DB2160 flight battery and C10000/C12000 charger are sold separately. So is the four-nozzle Mist Nozzle Package: add it to lift flow from the standard 30 L/min to 40 L/min, useful for deeper canopy penetration on denser crops.

The T100 platform is also flown in spreading configurations for seeding and fertiliser work. Contact East Coast Drones if you’re after a spreading setup or help specifying the right battery and charger combination. We operate these aircraft ourselves and can talk through the right configuration for your operation.

Additional information

Brand

DJI

Model

Agras T100

Category

Agricultural Drones
