Name: DJI Agras T50 Kit 01
Brand: DJI
SKU: DJIAG-T50Set1
Price: 37950.00 AUD
Availability: InStock

DJI Agras T50 Kit 01

$37,950.00

The DJI Agras T50 supplied as a complete working setup: aircraft, battery station, three DB1560 intelligent flight batteries, WB37 controller battery with charging hub, a set of AC cables and a 65 W controller charger.

40 kg spraying or 50 kg spreading payload, up to 21 hectares an hour, with 360 degree phased array radar and binocular vision. Supplied and supported from Central Queensland.

Know your drone. Before you fly, check the CASA drone safety rules at knowyourdrone.gov.au.

SKU: DJIAG-T50Set1 Categories: Agras T50, Agricultural Drones

Specifications

Full manufacturer specifications for this model.

Spraying payload

40 kg at sea level; reduce by 10 kg for every 1,000 m of altitude

Spreading payload

50 kg at sea level; do not exceed the payload the DJI Agras app recommends

Field coverage

Up to 21 hectares per hour

Spray tank

40 L, HDPE

Spray width

4-11 m effective at a height of 3 m above the crop

Droplet size

50-500 μm

Sprinklers

Two LX8060SZ dual atomising centrifugal sprinklers, 1570 mm rear nozzle spacing

Max flow rate

16 L/min with two sprinklers; 24 L/min with the optional Four Sprinkler Kit

Delivery pumps

Two magnetic drive impeller pumps, 0-12 L/min each

Spreading system (75 L)

Spread tank

75 L, 50 kg internal load

Spread width

8 m

Discharge rate

Up to 108 kg/min

Compatible material

0.5-5 mm dry granules

Spreader

Doubled torque with an enlarged discharge hatch and a spiral channel spinning disk for uniform spreading; small hopper gates available for low flow rates

Loading and monitoring

Expanded loading gate for quick refills, weighing sensor for real-time remaining payload, and quick disassembly for cleaning

Aircraft

Weight

39.9 kg excluding battery, 52 kg including battery

Max takeoff weight

92 kg spraying, 103 kg spreading, at sea level

Max diagonal wheelbase

2200 mm

Dimensions

2800 x 3085 x 820 mm with arms and propellers unfolded; 1115 x 750 x 900 mm fully folded

Propellers

Eight 54 in (1371.6 mm) nylon carbon fibre propellers, 4000 W per rotor

Max wind resistance

6 m/s

Max configurable flight radius

2000 m

Hovering accuracy

Plus or minus 10 cm horizontal and vertical with RTK enabled, with a strong GNSS signal

Satellite positioning

RTK dual-band across GPS, GLONASS, BeiDou, Galileo and QZSS; single-band GNSS without RTK

Sensing and safety

Phased array radar

Forward RD241608RF and rear RD241608RB, 360° multidirectional sensing, 1-50 m obstacle range

Obstacle avoidance

Works above 1.5 m over the obstacle at up to 10 m/s horizontal and 3 m/s vertical, with a 2.5 m safety limit distance between the propellers and the obstacle after braking

Binocular vision

Two sensor sets, 0.5-29 m measurement range, effective to 10 m/s, 90° horizontal by 106° vertical; needs adequate light and discernible surroundings

Terrain following

Slopes up to 50° with no prior mapping, 1-50 m altitude detection, 1.5-30 m stabilisation range

Operation

Application modes

Fully automatic and manual operation, Orchard Mode and Variable Rate Application

Orchard aerial survey

Obstacle bypassing and terrain following on slopes up to 20°, with automatic fruit tree and obstacle identification and fully automatic 3D flight routes

Mapping throughput

A 5 hectare orchard mapped in 10 minutes, producing a 3D orchard map

Survey camera

High-resolution FPV gimbal camera capturing field and orchard imagery in real time

Video transmission

O3 Transmission, with optional DJI Relay; supports offline operation

What's in the box

Every item included in this set, with its own photo and specs where we have them.

×1

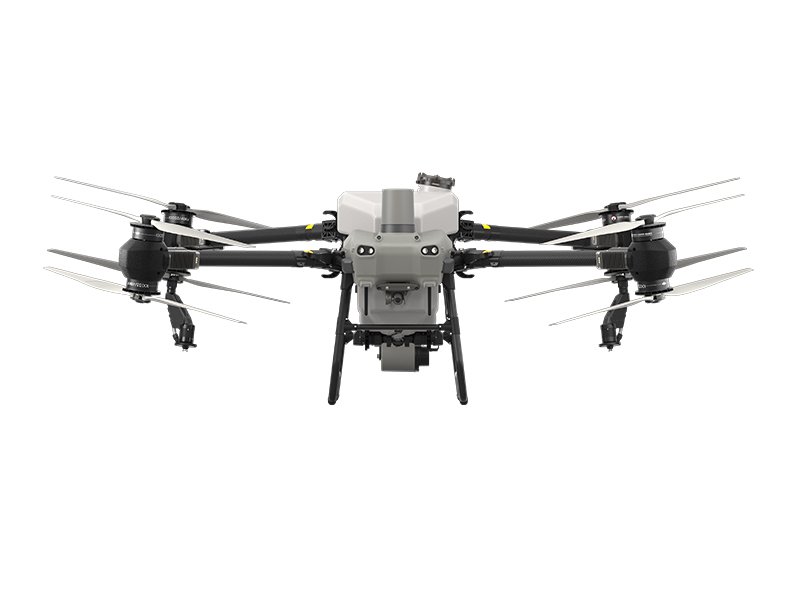

DJI Agras T50 aircraft

39.9 kg airframe excluding battery, 2200 mm diagonal wheelbase.

×1

C10000 Battery Station

×3

DB1560 Intelligent Flight Battery

30,000 mAh, 52.22 V nominal, approx. 12.1 kg.

×1

WB37 Controller Battery

4,920 mAh, 7.6 V LiPo, 37.39 Wh.

×1

WB37 Charging Hub

USB-C, 65 W PD fast charging.

×1

AC cables

Supplied as a set.

×1

65 W controller charger

Ready to work on day one

Kit 01 is the DJI Agras T50 supplied as a complete working setup: the aircraft, the battery station, three DB1560 intelligent flight batteries, a WB37 controller battery with charging hub, a set of AC cables and a 65 W controller charger. Three batteries in rotation keep the aircraft spraying while the others charge.

Sensing that suits Queensland country

Forward and rear active phased array radars give 360° multidirectional obstacle sensing, and two sets of binocular vision sensors read terrain in detail for automatic obstacle bypassing and terrain following on slopes up to 50° with no prior mapping. Payload figures are measured at sea level and reduce with altitude; the DJI Agras app recommends the safe payload for the conditions on the day.

Brand

DJI

Model

Agras T50
