DJI Agras T50 Atomized Sprinkler Package(Global)

Name: DJI Agras T50 Atomized Sprinkler Package(Global)
Brand: DJI
SKU: DJIAGT50-02
Price: 1100.00 AUD
Availability: InStock

$1,100.00

SKU: DJIAGT50-02 Categories: Agras T50 Spares, Parts & Spares

with all four sprinklers fitted

24 L/min

Max flow rate

up from 2 standard

4 sprinklers

Total sprinklers

at 3 m above the crop

4-11 m

Effective spray width

Specifications

Full manufacturer specifications for this model.

Atomized Sprinkler Package

Adds

Two extra nozzles on the T50's front arms, taking the spraying system from two sprinklers to four

Sprinkler model

LX8060SZ, the same nozzle used on the standard rear sprinklers

Droplet size

50 to 500 micrometres

Max flow rate

16 L/min standard with 2 sprinklers, 24 L/min with this package fitted (4 sprinklers)

Effective spray width

4 to 11 m, measured at a height of 3 m above the crop

Fitting

Must be carried out by a DJI authorised dealer

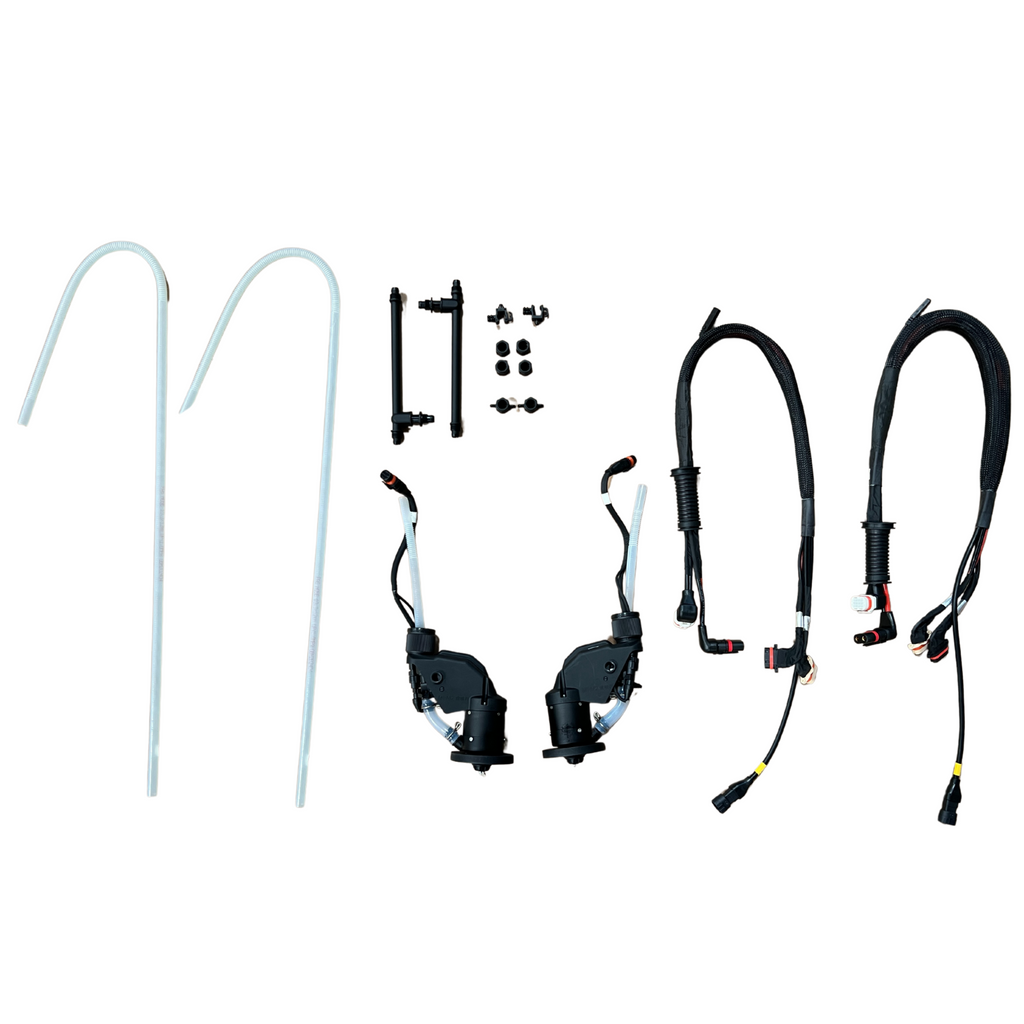

What's in the box

×2

Atomized Sprinkler and Spray Lance Module

×2

Front Sprinkler Composite Cable

×2

U-Shaped Elbow

×2

T-Shaped Connector and One-Way Valve Module

×2

Frame Arm Bellows Hose

×2

Hose Clamp

×4

M15 Screw Nut

×2

Thumb Nut

×1

Screw Package

Four-sprinkler spraying for the T50

This package fits two extra LX8060SZ nozzles to the T50’s front arms, alongside the two standard rear sprinklers. With all four running, maximum flow rate rises from 16 L/min to 24 L/min while droplet size and effective spray width stay the same as the standard two-sprinkler setup. Fitting must be carried out by a DJI authorised dealer.

Spare parts for the Agras T50

Exploded diagrams, part numbers and prices. Add straight to your cart.

View parts

Description

The DJI Agras T50 Atomized Sprinkler Package (Global) adds two nozzles to the T50’s front arms, raising maximum flow rate from 16 L/min to 24 L/min. The added LX8060SZ nozzles produce the same 50 to 500 μm droplet size as the standard rear nozzles, for an effective spray width of 4 to 11 m at 3 m above the crop. Fitting must be done by a DJI authorised dealer.

Additional information

Brand	DJI
Model	Agras T50
Category	Parts & Spares
