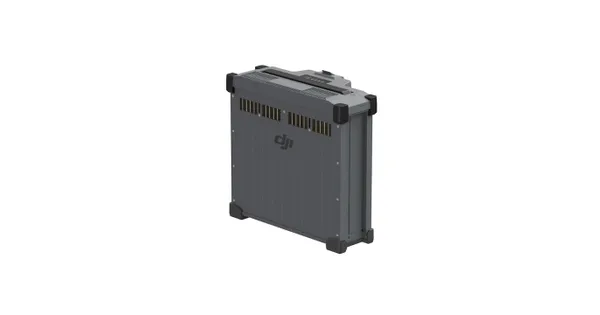

DJI Agras DB1560 Intelligent Flight Battery for T50 / T40

Name: DJI Agras DB1560 Intelligent Flight Battery for T50 / T40
Brand: DJI
SKU: DJIAG-DB1560
Price: 3699.00 AUD
Availability: InStock

$3,699.00

SKU: DJIAG-DB1560 Categories: Batteries & Power, Parts & Spares, Agras T40 Spares, Agras T50 Spares

Specifications

Full manufacturer specifications for this model.

Compatibility

Compatible aircraft

DJI Agras T50, T40, T25, T30 and T20P (as listed by DJI)

Agras T25P

DJI lists only the DB800 for the T25P and does not list the DB1560 for it, so please check with us before fitting one

Not for

Agras T100 (uses the DB2160 battery)

Battery

Model

DB1560 Intelligent Flight Battery (BAX702-30000mAh-52.22V)

Capacity

30,000 mAh

Nominal voltage

52.22 V

Energy

1,567 Wh

Weight

Approx. 12.1 kg

Type

Li-ion (LiNiMnCoO2 chemistry)

Discharge rate

11.5C

Operating temperature

-5 to 45°C

Charging temperature

0 to 60°C

IP rating

IP54, with board-level potting protection

Warranted charge cycles

1,500 cycles or 12 months, whichever comes first

Flight time on the T50 (DJI figures)

Hovering time, spraying, no payload

16.5 min (52 kg takeoff weight)

Hovering time, spraying, fully loaded

7 min (92 kg takeoff weight)

Hovering time, spreading, no payload

15 min (53 kg takeoff weight)

Hovering time, spreading, fully loaded

5.5 min (103 kg takeoff weight)

Test conditions

Sea level, wind under 3 m/s, 25°C, 30,000 mAh DB1560 battery. For reference only; results vary with conditions.

Spare parts for the Agras T50

Exploded diagrams, part numbers and prices. Add straight to your cart.

View parts

Description

The DB1560 is DJI’s intelligent flight battery for the Agras T40 and T50, rated at 30,000 mAh and 52.22 V nominal (about 12.1 kg). It discharges at up to 11.5C and charges at up to 6C, reaching 30 to 95% in around 9 to 12 minutes on the C10000 charger.

Compatibility

Works with: DJI Agras T50, T40, T25, T30 and T20P, the aircraft DJI lists for the DB1560 in its T50/T25 flight manual.
Agras T25P: DJI’s T25P pages list only the DB800, and the DB1560 is not listed for the T25P, so please check with us before fitting one.
Not for the Agras T100, which uses the DB2160 battery.

Flight times on the T50

DJI publishes these hovering times for the T50 flying on a 30,000 mAh DB1560 battery. They were tested at sea level, in wind under 3 m/s and at 25°C, are for reference only, and vary with conditions.
