DJI RC Plus 2 Sub2G SDR Module

$170.00

The DJI RC Plus 2 sub2G SDR Module is a rear mounted upgrade for the DJI RC Plus 2 Enterprise Enhanced controller. It adds the 902 to 928 MHz and 1.4 GHz bands for better signal penetration in dense or obstructed environments, and is designed for use with the Matrice 400.

SKU: DJIRCPLUS2-02 Categories: ,
FCC/ISM band
902-928 MHz
Sub-2 GHz band
listed for SRRC (China)
1.430-1.444 GHz
Second band
vertical polarised antenna
2 x 2 MIMO
Transmit and receive
shows band and system state
1 LED
Status indicator

Specifications

Full manufacturer specifications for this model.

Module
Frequency bands
902 to 928 MHz and 1.430 to 1.444 GHz
Channels
2 transmit, 2 receive (MIMO)
Antenna
High gain monopole array, vertical polarisation
Status indicator
Built in LED
Mounting
Rear mounted, fixed with screws
Compatibility
Controller
DJI RC Plus 2 Enterprise Enhanced
Designed for
DJI Matrice 400
Supplied
In the box
1 SDR module, 2 screws, 2 screw washers and 1 screwdriver

Reach through more clutter

The SDR module adds the 902 to 928 MHz and 1.4 GHz bands to the RC Plus 2 Enterprise Enhanced. Lower frequencies bend around and pass through terrain and obstacles better than the 2.4 and 5.8 GHz bands, which helps in dense or obstructed mission areas.

  • Mounts on the back of the controller
  • Built in LED shows the band and system state
  • Designed for the Matrice 400

Check the rules before you fly

Radio frequency rules differ by country and by band. Check that these bands are permitted for your use in Australia before you operate on them. Ask us if you are unsure.

Fits the RC Plus 2 Enterprise Enhanced only

The module is made for the DJI RC Plus 2 Enterprise Enhanced controller. It is not listed for other controllers. The controller and aircraft are sold separately.

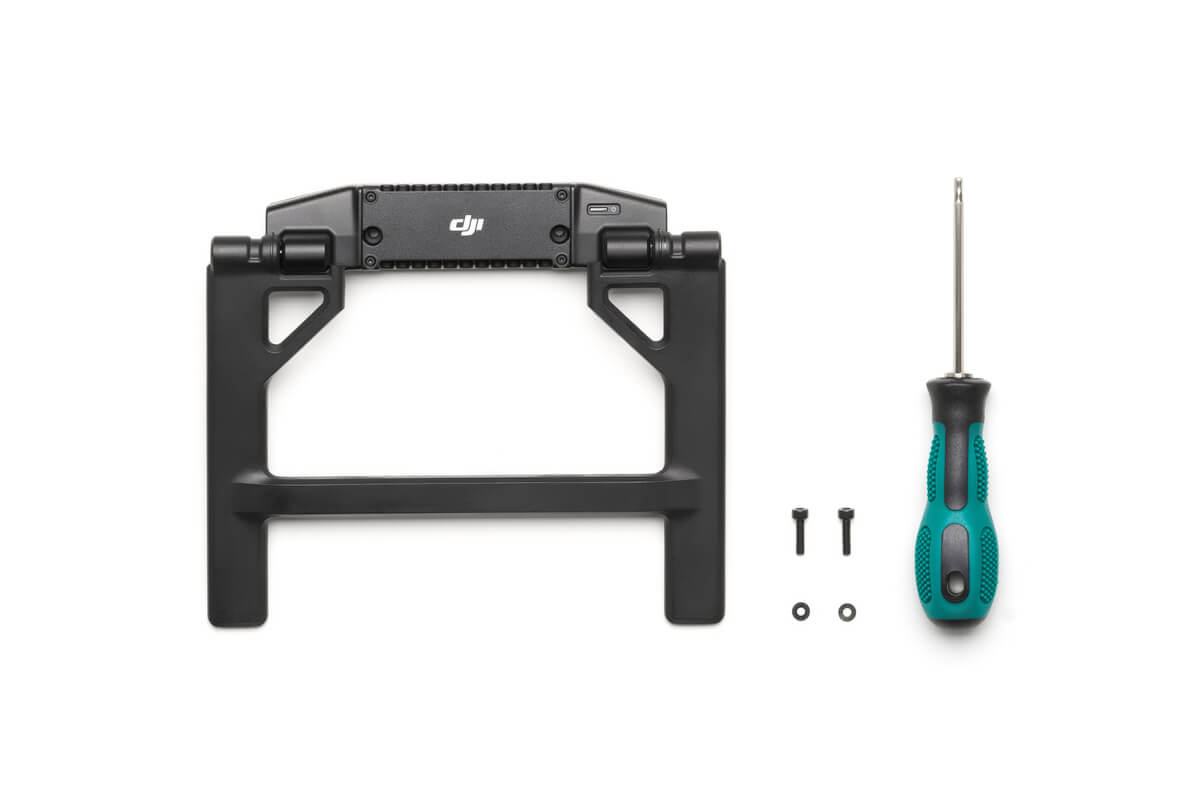

What is in the box

  • 1 x SDR module
  • 2 x screws
  • 2 x screw washers
  • 1 x screwdriver

Not sure this fits your setup?

Call us on 0418 510 987 or use the contact page. Tell us the equipment you have and we will confirm it suits before you order.
