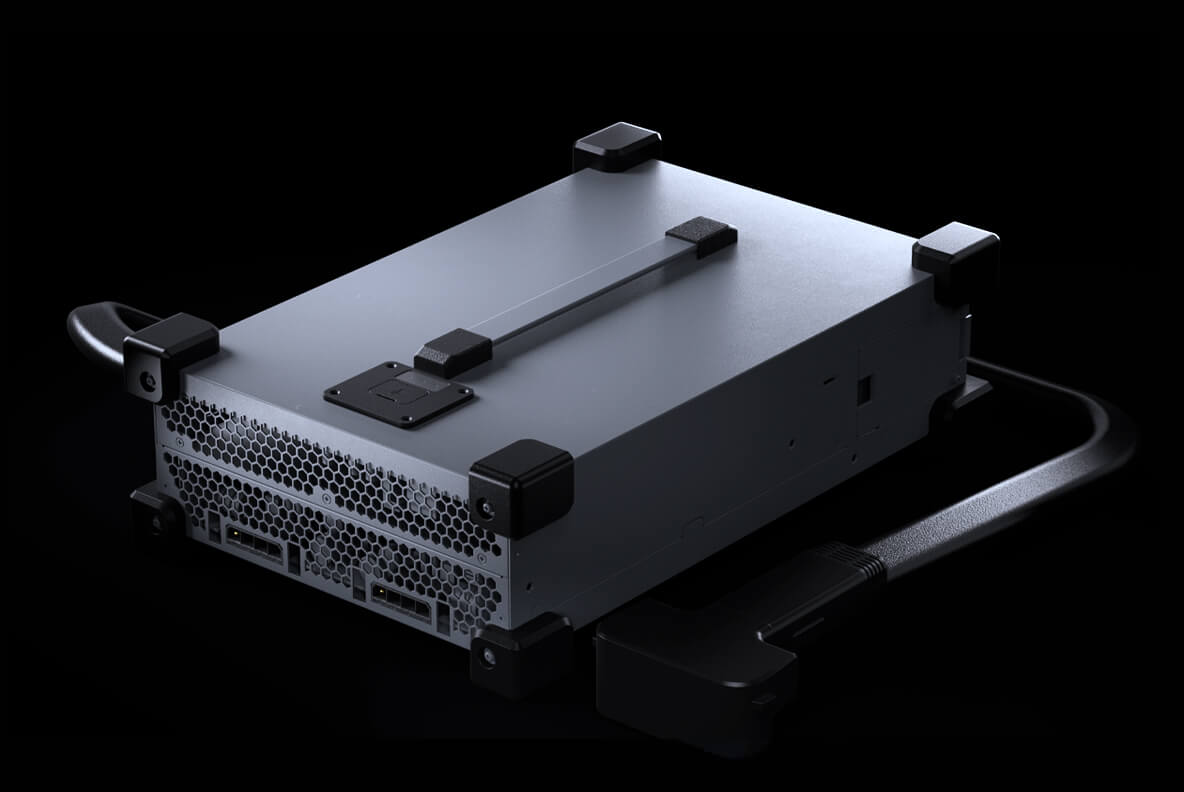

DJI C10000 Intelligent Power Supply for T50 (DB1560)

Name: DJI C10000 Intelligent Power Supply for T50 (DB1560)
SKU: DJIC10000-DB1560
Price: 2310.00 AUD
Availability: InStock

$2,310.00

The C10000 charger configuration for the DB1560 intelligent flight battery used by the DJI Agras T50. This version has been superseded, but may still be sourced by supplier enquiry. Contact East Coast Drones to confirm availability and pricing.

SKU: DJIC10000-DB1560 Categories: Agras T50 Spares, Batteries & Power

at 220 to 240 V input

9000 W

Maximum output

one DB1560 battery, per DJI

9-12 min

Charge time

approx.

11.4 kg

Weight

model CSX702-9500

400 x 266 x 120 mm

Size

Specifications

Full manufacturer specifications for this model.

Charger

Model number

CSX702-9500

Dimensions

400 x 266 x 120 mm

Weight

Approx. 11.4 kg

Charge time

Fully charges a DB1560 battery in 9 to 12 minutes

Power input and output

Input at 220 to 240 V

Main and auxiliary, 50/60 Hz, 24 A maximum each

Output at 220 to 240 V

59.92 V DC maximum, 175 A maximum, 9000 W maximum

Input at 100 to 120 V

Main and auxiliary, 50/60 Hz, 16 A maximum each

Output at 100 to 120 V

59.92 V DC maximum, 60 A maximum, 3000 W maximum

Protection

Charger protection

Over-voltage, over-charge, under-voltage and over-temperature

Charging safety

AC wire, power wire and charge connector protection

Compatibility

Battery

DJI Agras DB1560 intelligent flight battery (Agras T50)

This configuration

T50 version with the DB1560 connector. The T100 version is listed separately.

Fast field charging for the Agras T50

The C10000 is a portable charger that refills a DB1560 flight battery in about 9 to 12 minutes, per DJI, so a small pool of batteries can keep a spray day moving. It takes two AC inputs and needs a suitable power supply, such as a generator. Charge time depends on altitude, the charging cable and battery cell temperature.

Power you need on site

At 220 to 240 V the C10000 can deliver up to 9000 W. At 100 to 120 V the limit drops to 3000 W, so charging will be much slower. Plan a supply that can meet the input current shown in the specifications.

Superseded version, ask about stock

This listing is the C10000 with the connector for the DB1560 battery used by the Agras T50. It has been superseded by the newer configuration supplied for the Agras T100 and its DB2160 battery, which is listed separately. Supplier stock may still be available. Contact us to confirm the correct configuration, availability and pricing before you order.

Charger only. The flight battery is not included.
