DJI AS1 Speaker For Matrice 4 Series

Original price was: $340.00.Current price is: $339.00.

DJI AS1 Speaker For Matrice 4 Series

The DJI AS1 Speaker can reach a volume of 114 decibels at a distance of 1 meter, with a broadcast range of up to 300 meters.

SKU: DJIM4-01 Categories: ,

Description

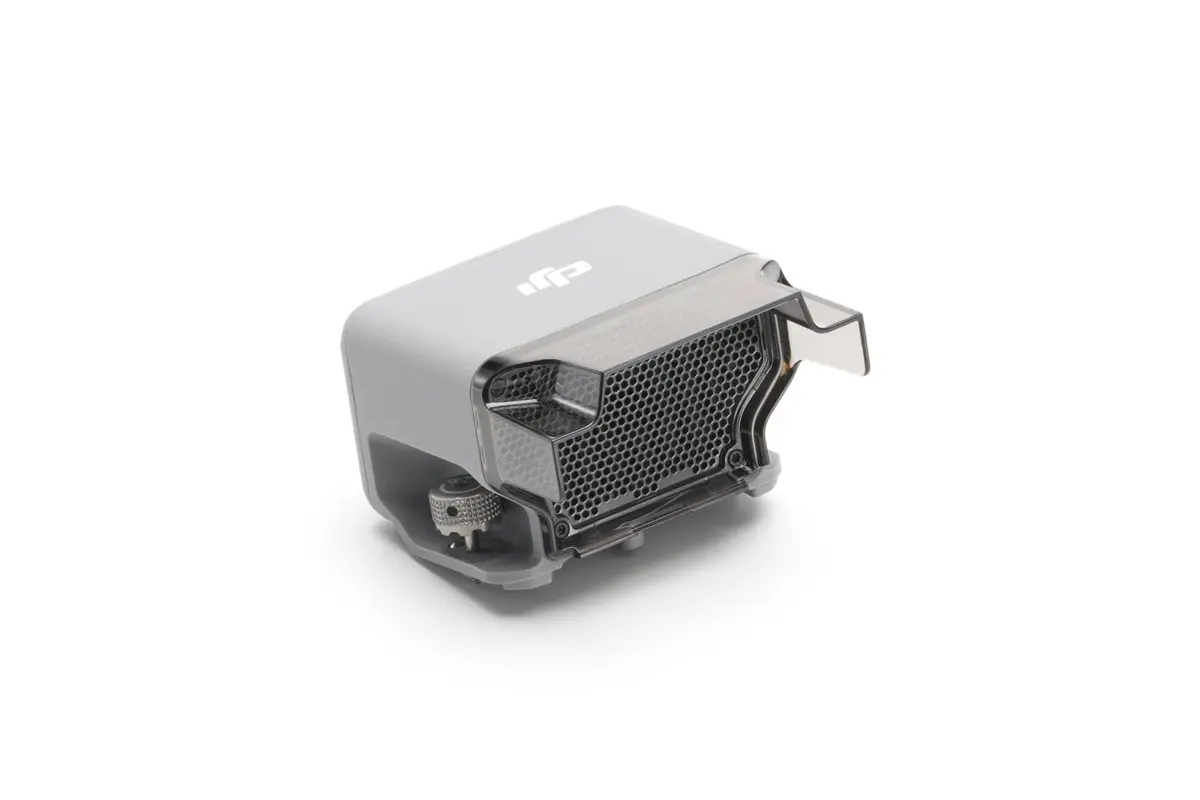

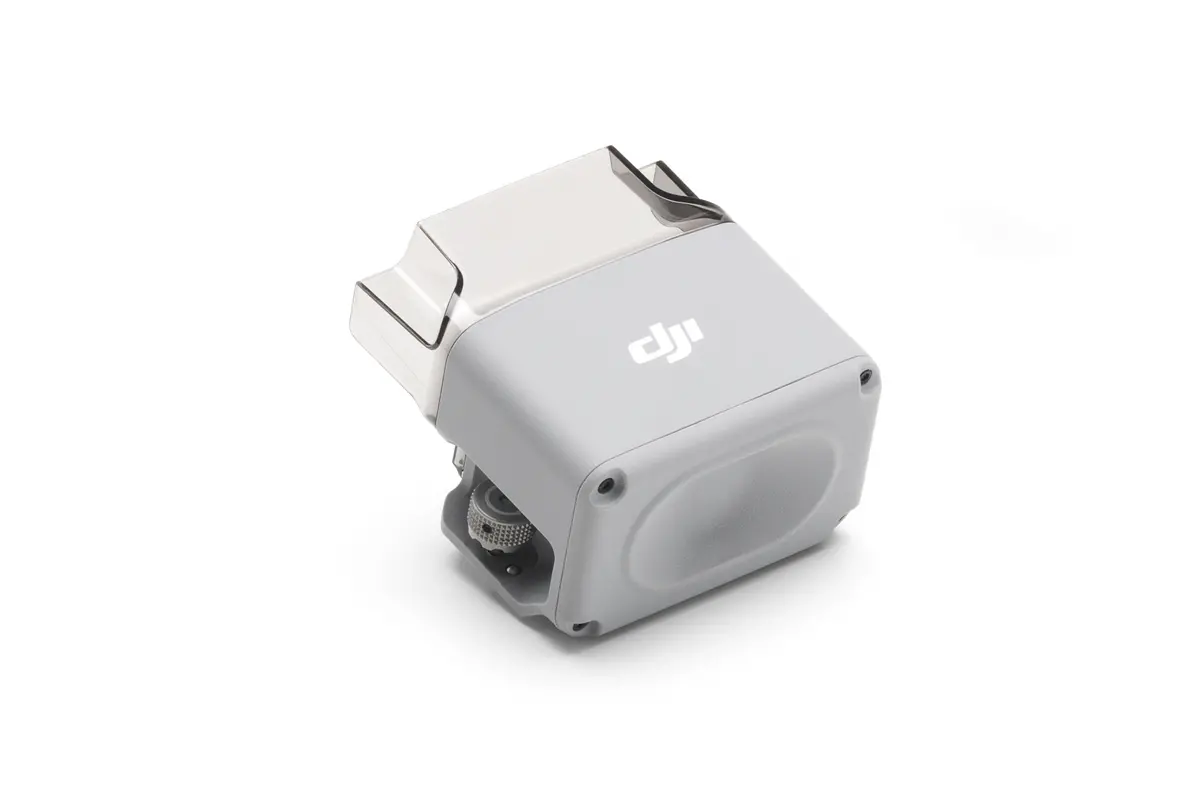

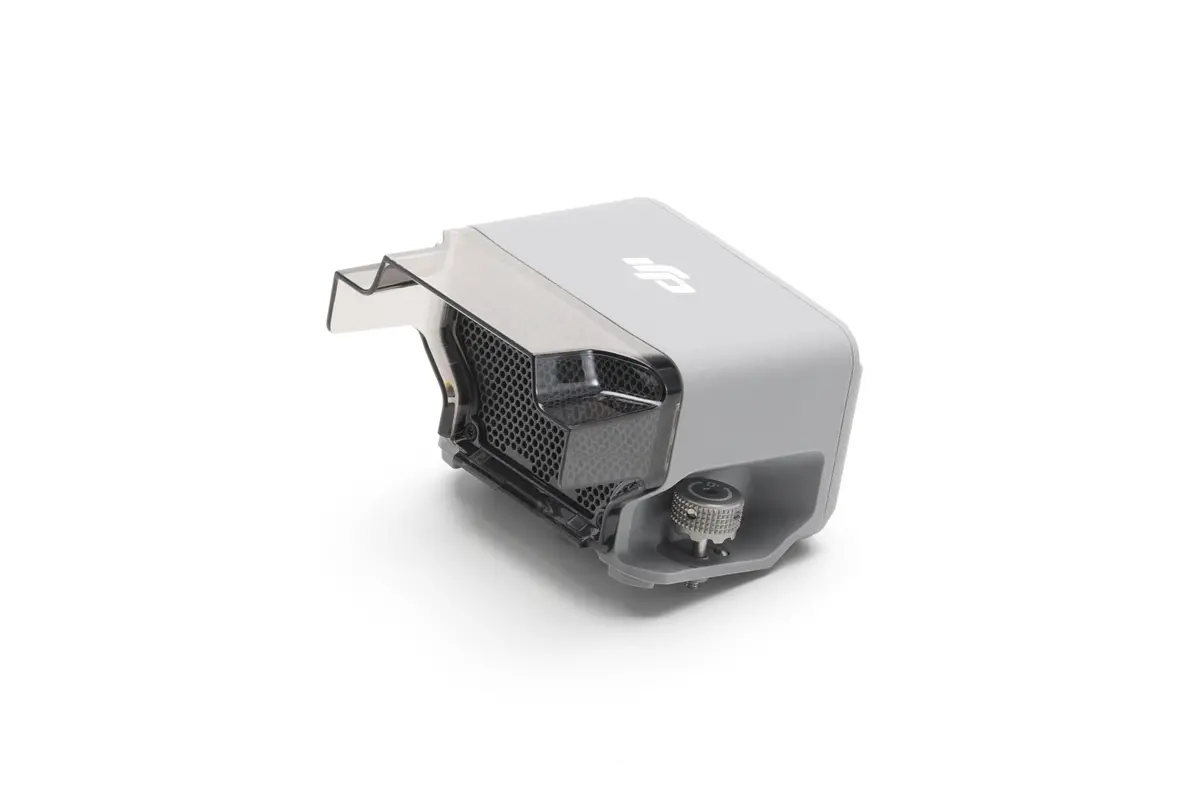

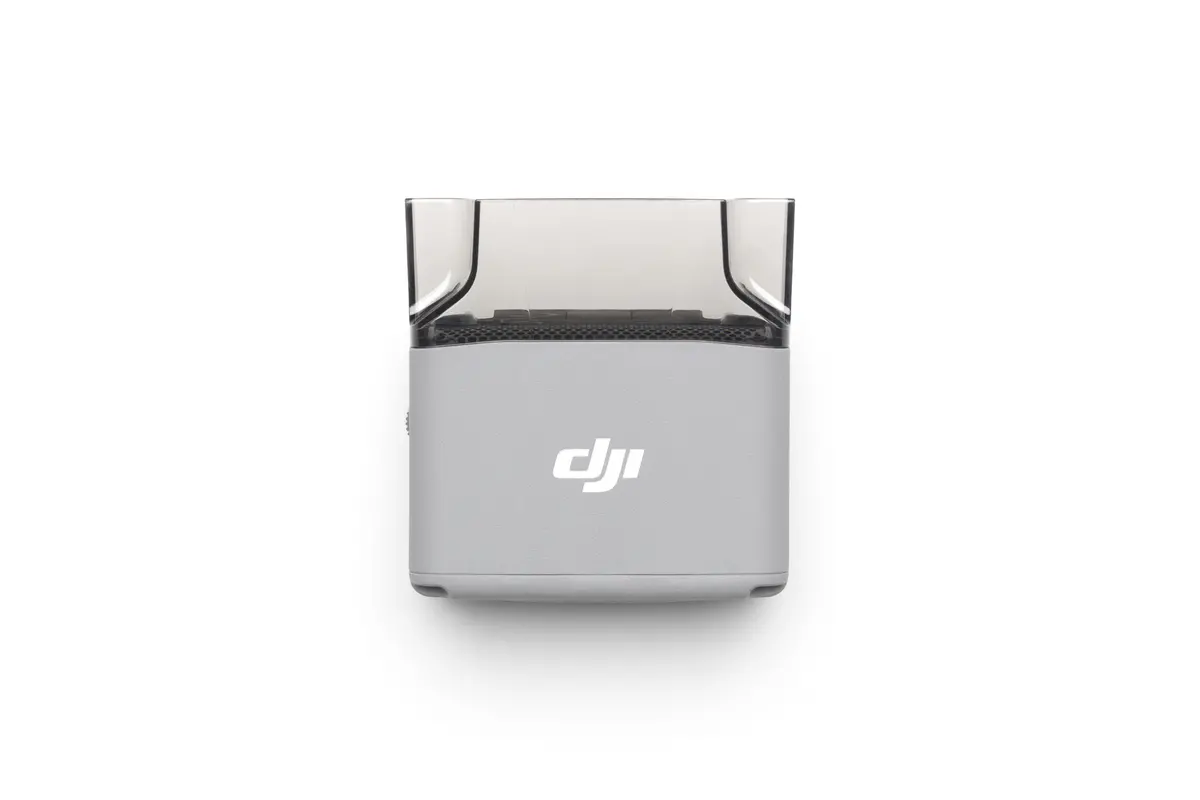

DJI AS1 Speaker For Matrice 4 Series

The DJI AS1 Speaker offers impressive sound power and extensive range. It has a broadcast range of up to 300 meters and can produce a volume of up to 114 decibels at a distance of 1 meter. [17] It supports recorded messages, media imports, and text-to-speech conversion. [18] Additionally, it features real-time broadcasting and echo suppression, [19] enhancing the efficiency and flexibility of emergency search-and-rescue operations.



Overview

Louder volume, further reach. The DJI AS1 Speaker can reach 114 decibels at 1 meter, with a broadcast range of up to 300 meters. [1] It supports recorded messages, media imports, and text-to-speech conversion [2]. Additionally, it features real-time broadcasting and echo suppression. [3] The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.

Highlights

The DJI AS1 Speaker can reach a volume of 114 decibels at a distance of 1 meter, with a broadcast range of up to 300 meters.

Tips

1. When installing the speaker on drones, tighten the screws and ensure proper sealing of the interface. When using for long-term or with DJI Dock, use the included hex key to tighten the screws again.

2. When using the speaker with Matrice 4D Series drones or with the spotlight, please remove the adapter bracket at the bottom.

3. After installation, connect to the internet to activate the speaker and calibrate compass as instructed. If there is a firmware update notification, update to the latest firmware promptly.

4. After installing the speaker, upward obstacle avoidance on Matrice 4D Series drones will be disabled, and the drones’ power performance will be affected. Please ensure flight safety.

5. DO NOT use the speaker near people or in an urban area where noise-sensitive structures are concentrated, as the loudness could lead to accidents or injuries.

6. It is not recommended to play single-frequency sounds to avoid irreversible damage to the speaker.

In The Box

Speaker × 1

Spare Adapter Bracket × 1

Hex Key × 1

Specifications

AS1 Speaker

Weight:

90 g (excluding bracket)

Dimensions:

73×70×47 mm (L×W×H, without bracket)

Max Power: 15 W

Max Volume [1]: At 1 meter, it can reach 114 decibels (114dB@1m)

Effective Broadcast Range [1]: 300 m

Broadcast Modes: Real-time broadcasting (supports echo suppression), record & broadcast, file input (supports simultaneous transmission and broadcast), text-to-speech [2]

Operating Temperature:-20° to 50° C (-4° to 122° F)

Mounting Method: Quick-release hand-tightened screws

Ingress Protection Rating: IP55 (with Matrice 4D Series)

Compatibility

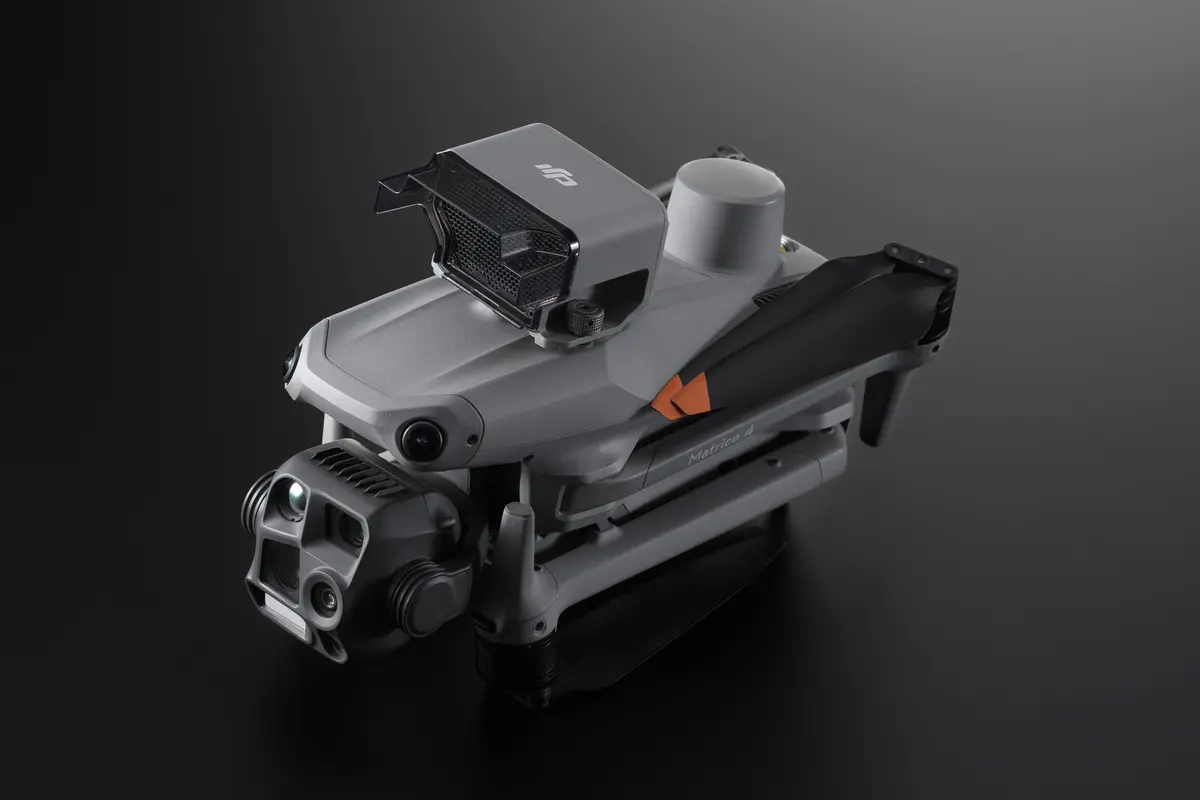

Support for use with DJI Matrice 4 Series aircraft.

1. Tested at room temperature (77°F/25°C) and should be used for reference only. The actual situation will be slightly different due to different software versions, sound sources, specific environments, and other conditions. The final result is subject to actual use.

2. The current text-to-speech function only supports Mandarin Chinese and English.

3. Need to upgrade to the latest firmware.

Additional information

Weight.250 kg
