The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. ^[1] Additionally, it can intelligently link with the gimbal, following the camera’s movements to ensure the illuminated area matches the camera’s view. It also offers a wide fov lighting mode, which can light up a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.

The spotlight supports two modes: always-on and strobe, providing clear illumination of subjects. It also links with the gimbal.

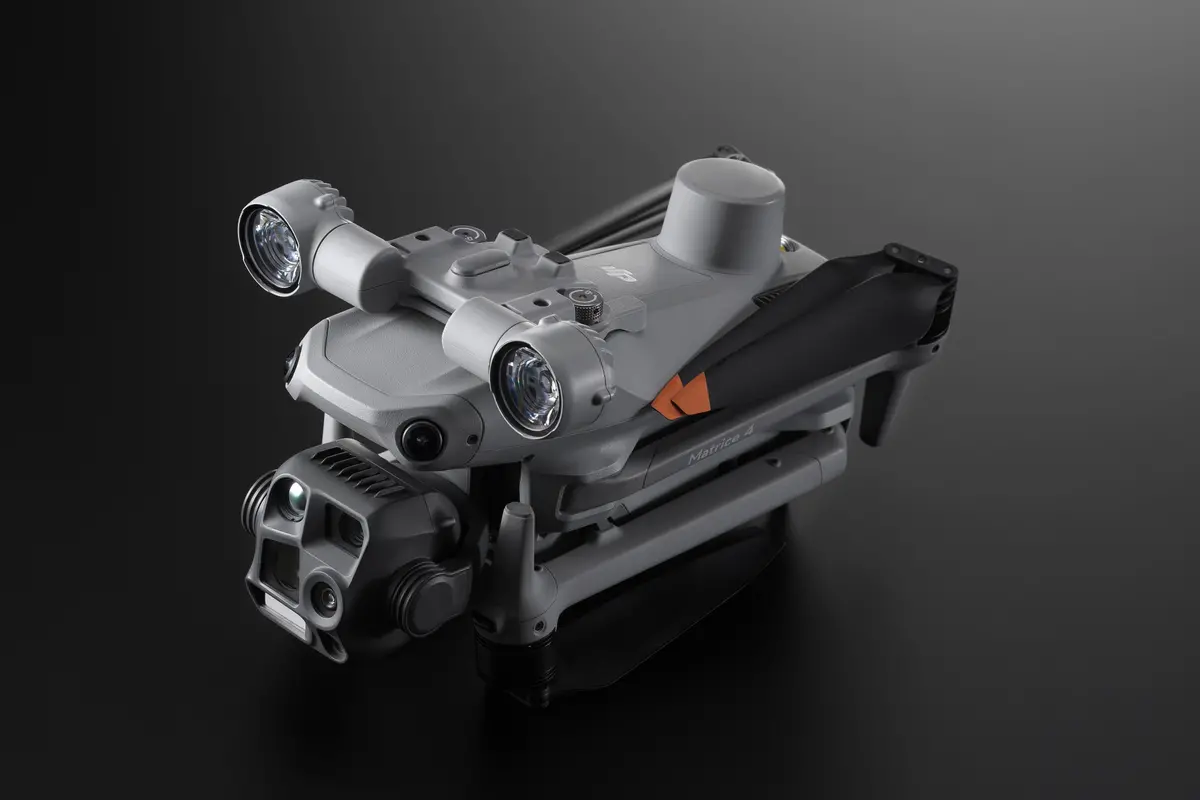

1. When installing the spotlight on drones, tighten the screws and ensure proper sealing of the interface. When using for long-term or with DJI Dock, use the included hex key to tighten the screws again.

2. When installed on Matrice 4D Series drones, please remove the adapter bracket at the bottom.

3. After installation, connect to the internet to activate the spotlight as instructed. If there is a firmware update notification, update to the latest firmware promptly.

4. After installing the spotlight, the obstacle avoidance performance on the left and right sides of Matrice 4 Series drones will be reduced, and the upward obstacle avoidance of Matrice 4D Series drones will be disabled. Additionally, the drones’ power performance will be affected. Please ensure flight safety.

5. When the spotlight is turned on, the obstacle avoidance function will deactivate automatically. Please ensure flight safety.

6. DO NOT point the spotlight directly at people’s eyes.

7. The spotlight may become hot after prolonged operation. Please be careful to avoid burns.

Spotlight × 1

Spare Screw × 2

Hex Key × 1

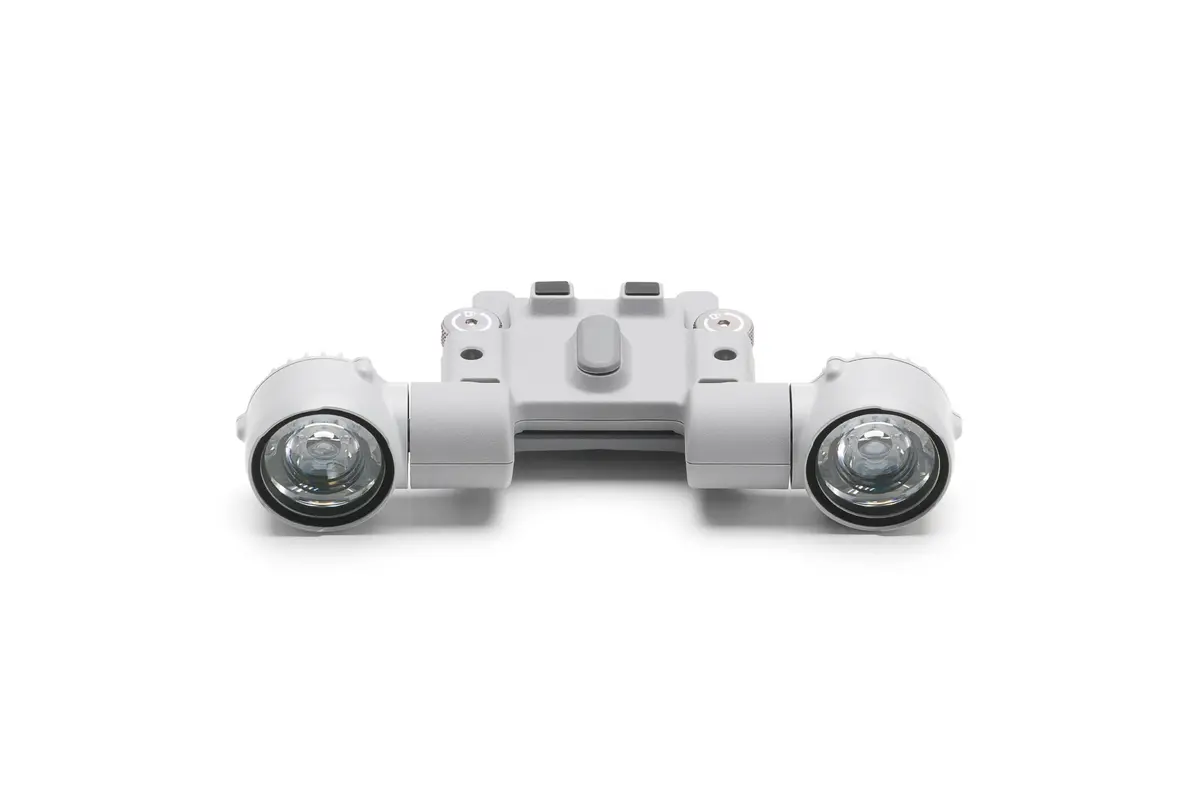

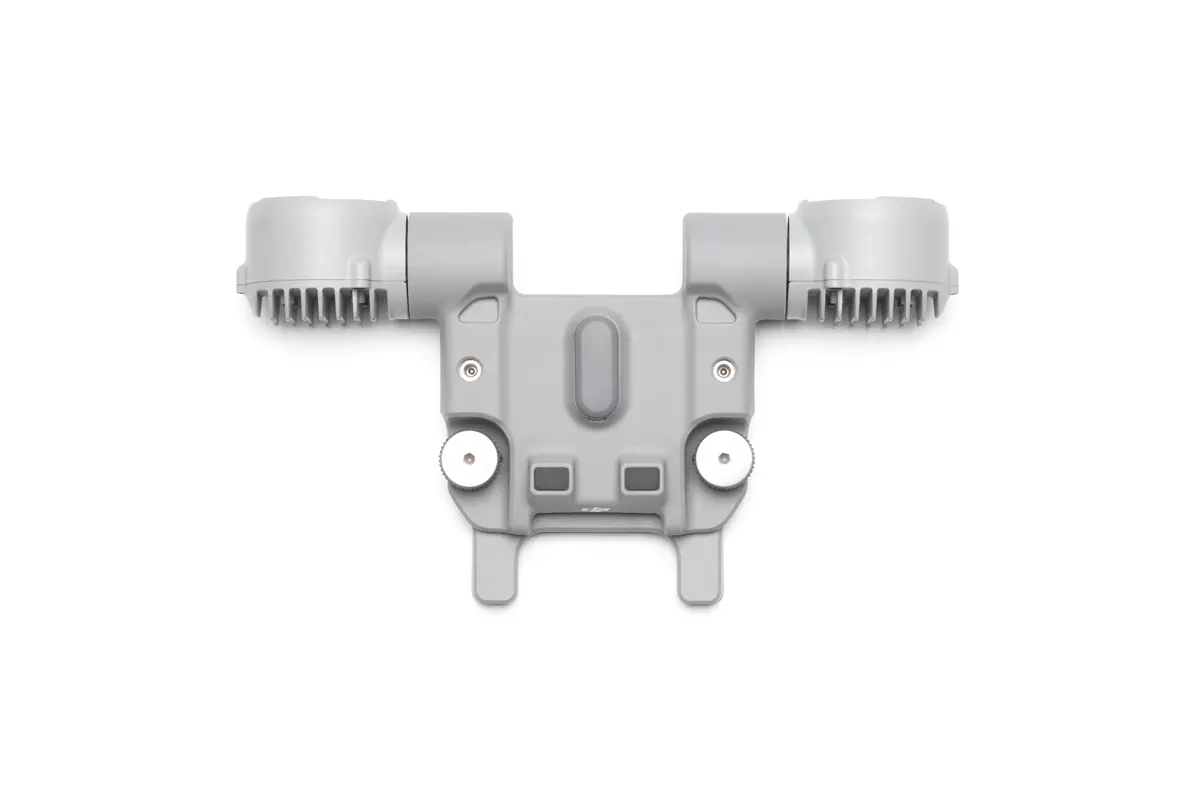

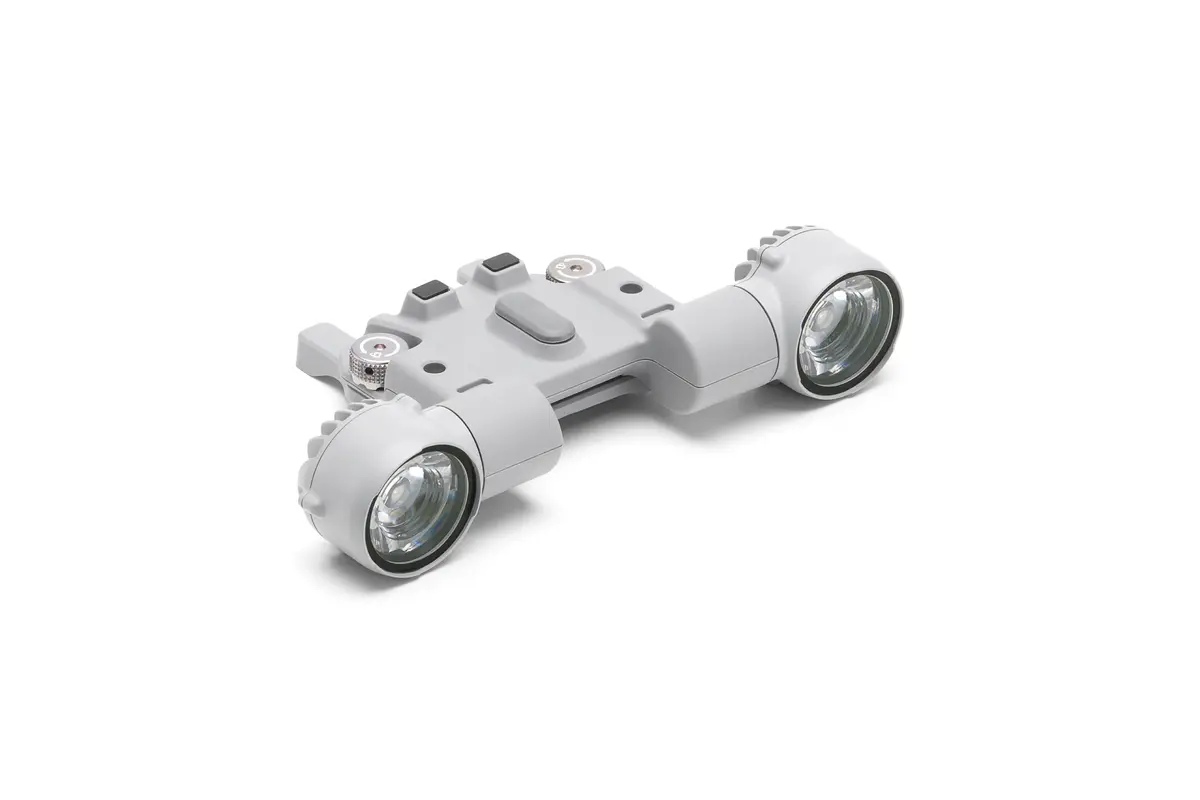

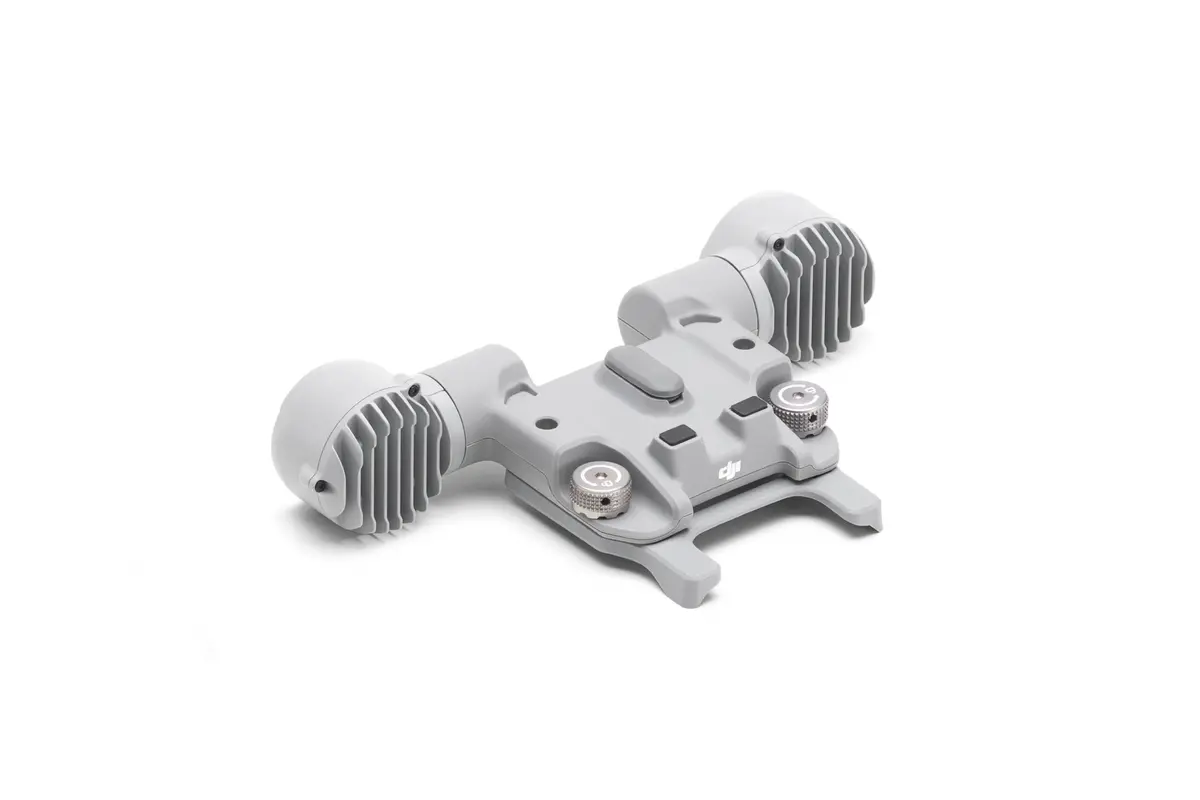

AL1 Spotlight

Weight:

91 g (excluding bracket)

Dimensions:

79×164×28 mm (L×W×H, excluding bracket)

Maximum Power: 32 W

Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters*

Effective Illumination Angle: 23°(10% relative illuminance)

Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)

2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode)

Modes: Always-on and strobe

Gimbal Mechanical Range (Tilt): -140° to 50°

Gimbal Controllable Range (Tilt): -90° to 35°

Max Control Speed (tilt): 120°/s

Gimbal Alignment Accuracy: ±0.1°

Operating Temperature:-20° to 50° C (-4° to 122° F)

Mounting Method: Quick-release hand-tightened screws

Protection Rating: IP55 (with Matrice 4D Series)

* The data was measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25°C (77° F).

Support for use with DJI Matrice 4 Series aircraft.
